Gracey curettes are area-specific periodontal instruments, and their numbers indicate which teeth and surfaces each curette is designed to reach. Unlike universal curettes, each Gracey has an offset blade with a single working cutting edge that adapts to a defined region of the mouth. This guide explains the Gracey numbering system, matches numbers to surfaces, and covers correct clinical use.
What is the Gracey curette numbering system?

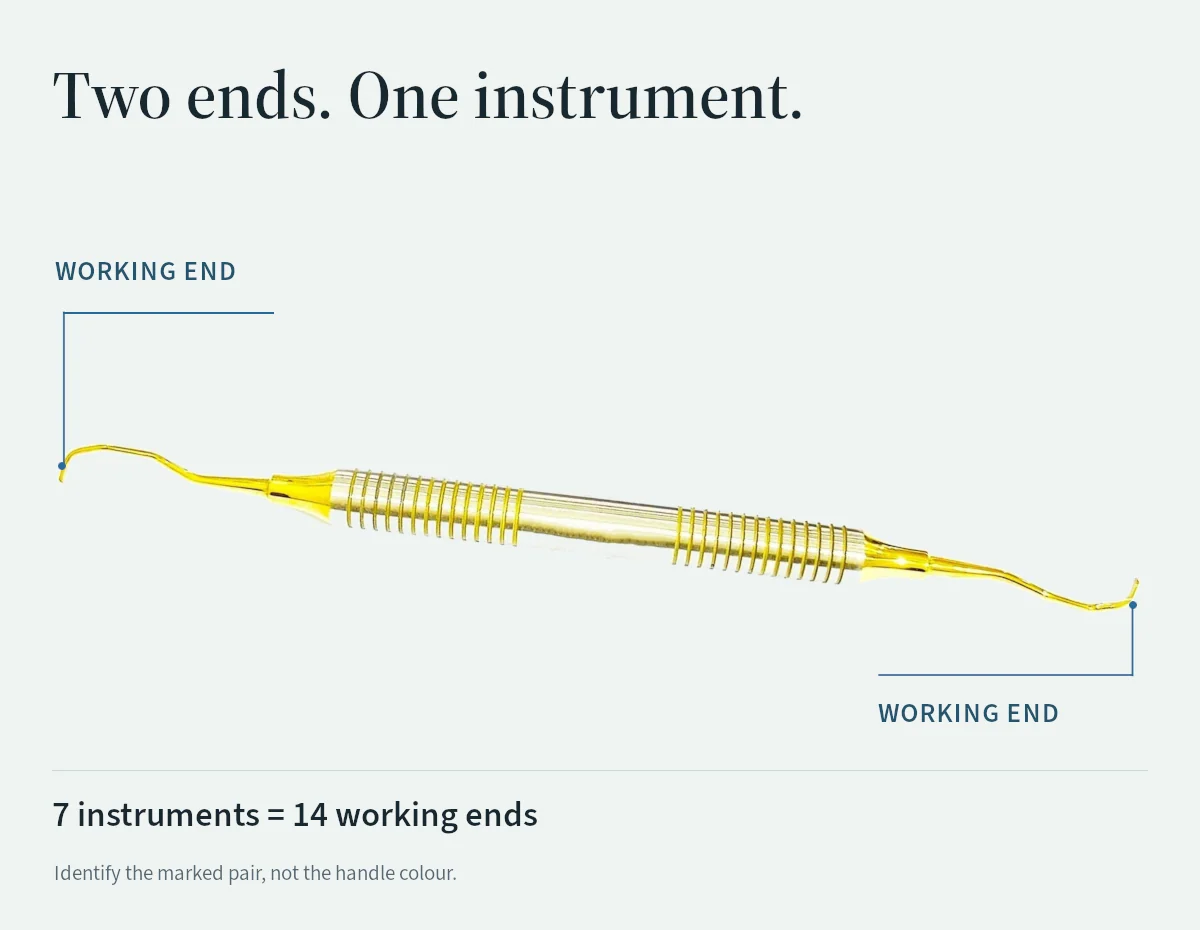

The Gracey numbering system assigns paired numbers (such as 1/2, 11/12, 13/14) to curettes designed for specific tooth regions, with lower numbers for anterior teeth and higher numbers for posterior surfaces. Each double-ended instrument carries two mirror-image ends, so one curette adapts to both sides of the mouth. The offset blade is angled about 70 degrees to the shank, so only the lower cutting edge engages the root.
Gracey numbers and their tooth surfaces
Each Gracey number maps to a region and surface, which is what makes a full set cover the whole mouth:
| Gracey number | Area / surface | Working edge | Shank orientation |
|---|---|---|---|
| 1/2, 3/4 | Anterior teeth | Single lower cutting edge, offset ~70° to shank | Standard anterior shank |
| 5/6 | Anterior teeth and premolars | Single lower cutting edge, offset ~70° to shank | Standard shank |
| 7/8, 9/10 | Posterior teeth, facial and lingual surfaces | Single lower cutting edge, offset ~70° to shank | Standard posterior shank |
| 11/12 | Posterior teeth, mesial surfaces | Single lower cutting edge, offset ~70° to shank | Standard mesial-access shank |
| 13/14 | Posterior teeth, distal surfaces | Single lower cutting edge, offset ~70° to shank | Standard distal-access shank |
| 15/16 | Posterior mesial surfaces | Single lower cutting edge, offset ~70° to shank | Modified 11/12 shank (deeper access) |
| 17/18 | Posterior distal surfaces | Single lower cutting edge, offset ~70° to shank | Modified 13/14 shank (deeper access) |
Browse periodontal instruments and complete Gracey sets.
How are Gracey curettes different from universal curettes?

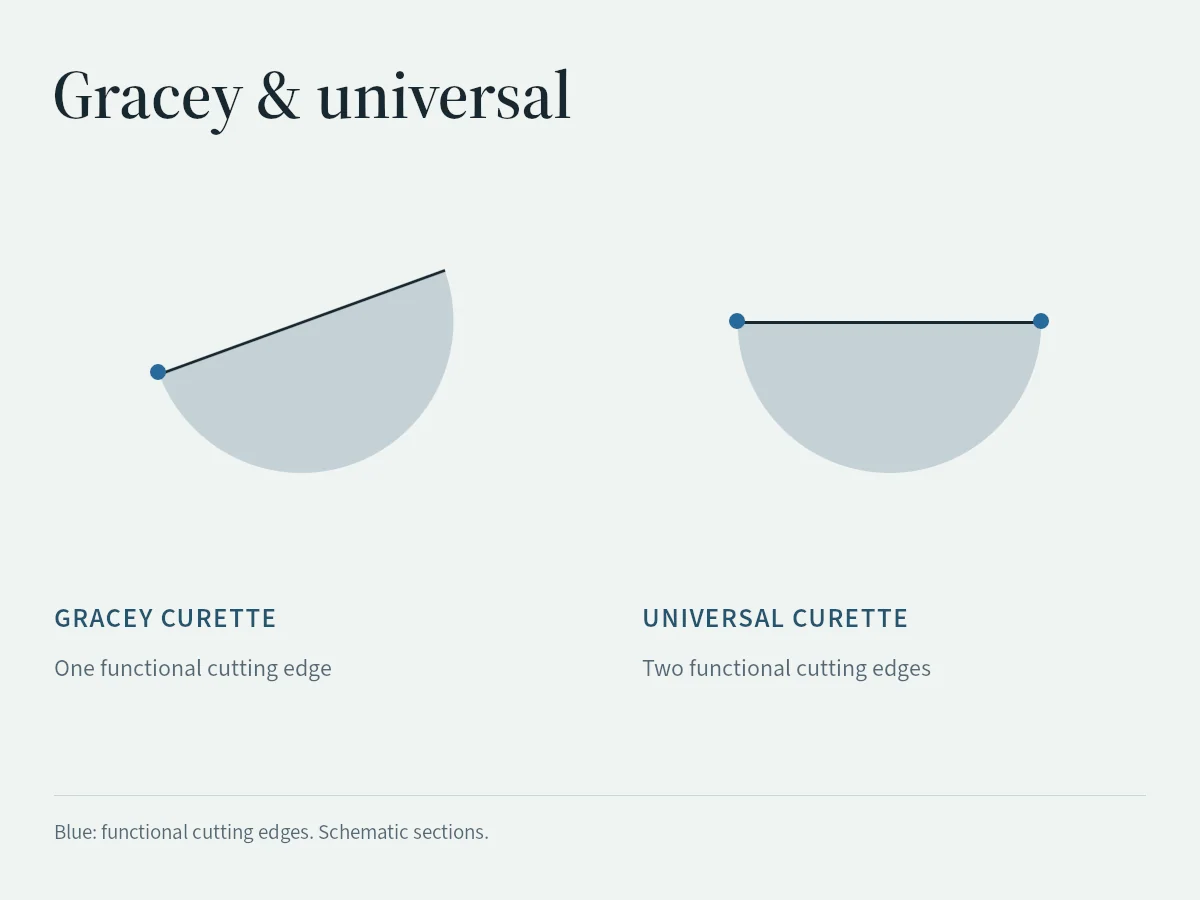

The key difference is that Gracey curettes are area-specific with one working cutting edge per blade, while universal curettes have two parallel cutting edges that adapt to all surfaces. The Gracey's offset blade and region-specific shank let it reach and adapt to a defined area with less tissue trauma, which is why a Gracey set is organized by tooth region rather than used interchangeably. Universal curettes such as the Columbia or Barnhart patterns cover more surfaces with fewer instruments but adapt less closely.
Finishing vs rigid Gracey curettes
Gracey curettes come in finishing and rigid versions for different tasks. Standard (finishing) Graceys have a more flexible shank that gives tactile feedback for light deposit removal and root planing. Rigid Graceys have a stronger, stiffer shank for removing heavier, more tenacious calculus. Many clinicians keep both, using rigid patterns for initial debridement and finishing patterns for definitive root planing.
How to use a Gracey curette
A Gracey curette is used with the lower (correct) cutting edge adapted to the root surface at a controlled angle. Adapt the blade so the face is roughly 70 degrees to the tooth, use a modified pen grasp with a stable finger rest, and work with controlled, overlapping strokes. Confirm the correct working end by checking that the lower edge is against the tooth. Because only one edge cuts, keeping that edge sharp is essential.
How to keep Gracey curettes sharp
Gracey curettes need regular sharpening because a dull edge burnishes calculus instead of removing it. Sharpen frequently and lightly, preserving the original blade angle so the area-specific geometry is maintained, and test the edge on an acrylic stick. Our step-by-step guide covers this: how to sharpen dental instruments.
Frequently asked questions
What is the Gracey 11/12 curette used for?
The Gracey 11/12 is used for the mesial surfaces of posterior teeth. Its shank bend and offset blade reach into posterior pockets and adapt to mesial root anatomy during scaling and root planing.
Which Gracey curette is for distal surfaces?
The Gracey 13/14 is designed for the distal surfaces of posterior teeth, with the 17/18 offering a modified shank for the same surfaces in deeper or harder-to-reach areas.
What is the difference between Gracey and universal curettes?
Gracey curettes are area-specific with one working cutting edge and an offset blade for a defined region, while universal curettes have two cutting edges that adapt to all surfaces. Graceys adapt more closely; universals cover more surfaces with fewer instruments.
