Periosteal Elevator Types and Selection Guide

What a Periosteal Elevator Is Designed to Do

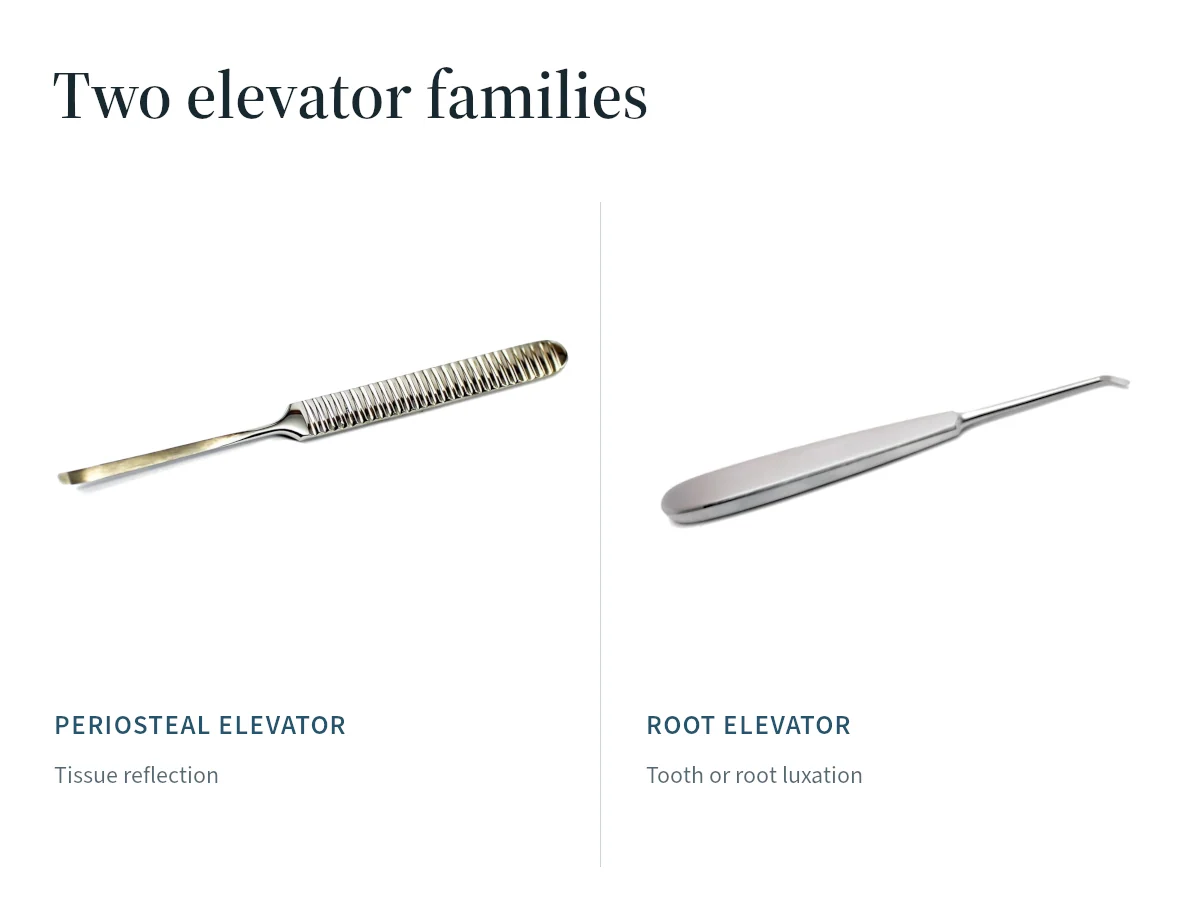

A periosteal elevator is a reusable hand instrument designed to separate and reflect periosteum or a mucoperiosteal flap from underlying bone. The working end is shaped to enter an established tissue plane and continue controlled reflection while maintaining access and visibility. That role is different from a dental root elevator, which is designed around tooth or root luxation. The shared word “elevator” causes frequent catalog and purchasing mistakes, so periosteal and extraction-elevator families should remain separate in product data, instrument lists, and sterilization cassettes.

The main design variables are blade width, edge form, curvature, terminal-shank angle, single- or double-ended construction, and handle diameter. A narrow end can provide focused access, while a broader end distributes contact over a wider area and may also support retraction. A sharp working edge and a blunt working edge do not have the same role. Buyers should therefore compare the complete working-end geometry rather than choosing only by overall length or a familiar pattern name.

Molt #9 Periosteal Elevator

The Molt #9 is one of the most commonly recognized double-ended periosteal patterns in dental surgery catalogs. It combines a narrower pointed end with a broader rounded end. In a typical instrument description, the narrow end is associated with initiating or extending reflection in a defined area, while the broad end is associated with continuing elevation and supporting retraction. The value of the pattern is its two distinct working ends in one instrument, which is why it appears frequently in general oral-surgery and extraction tray lists.

Not every product labelled “Molt 9” is dimensionally identical. Handle diameter, blade width, transition into the shank, surface finish, and the exact radius of the broad end can differ among manufacturers. Procurement teams should request the figure, total length, handle style, working-end measurements, and a sample when matching an existing set. The site’s dedicated Molt #9 page owns the exact product intent, while this guide owns the broader comparison query for periosteal elevator types.

• View the Molt #9 periosteal elevator
• HuFriedy Molt #9 product reference

Prichard, Freer, and Woodson Patterns

Prichard periosteal elevators are commonly represented with a broad, curved working end intended for substantial flap reflection and retraction. A Prichard pattern is normally selected when the buyer wants a broader profile than a fine dissecting pattern. The named figure still matters because catalogs may distinguish Prichard elevators from Prichard curettes or combined instruments. A quote should identify the complete pattern and not rely on “Prichard” alone.

Freer patterns commonly pair sharper and blunter ends in a relatively narrow profile. Woodson periosteal elevators also use narrow, controlled working ends and appear in periodontal, implant, and microsurgical catalogs. These names describe families, not a single universal measurement. When a buyer is replacing an existing Freer or Woodson instrument, a reference number, blade width, angle, and clear product photo are much more reliable than visual similarity in a small catalog thumbnail.

• HuFriedy periosteal catalog references

Allen, Buser, and Procedure-Specific Designs

Allen and Buser periosteal elevators are examples of pattern families developed around more specific access preferences, particularly in periodontal and implant instrument systems. Their working ends, angles, and handle options differ from the conventional Molt #9 profile. A specialized pattern should not be presented as automatically superior; it is simply designed around a different combination of access, blade width, and control. Clinical teams should approve the selection in relation to their established workflow.

Procedure-specific catalogs may also list anterior and posterior versions, mini or microsurgical forms, short handles, black-coated working ends, or combination instruments. These are meaningful product attributes. Coating, for example, affects appearance and contrast but must be supported by product-specific documentation. This website will not claim a coating, certification, or proprietary steel system for a locally supplied instrument unless that specification is confirmed for the exact SKU.

How to Compare Working Ends and Handles

Begin with access. A broad, gently curved end and a fine, narrow end solve different spatial problems. Next, document whether the instrument must be single-ended or double-ended, sharp and blunt, broad and narrow, or supplied in a paired configuration. Record blade width and overall length when the existing set depends on a consistent feel. Handle diameter, knurling, weight, and balance influence control and fatigue, but those preferences are best assessed through a physical sample rather than a marketing adjective.

Finish should be stated in the order rather than assumed. A satin finish reduces glare; a polished finish has a different visual and tactile character; and any coloured or coated working end needs its own verified specification. For private-label supply, also define marking space, logo orientation, catalog number, pouch label, and whether the instrument will be packed individually, in a procedure set, or in bulk protective packaging.

Manufacturing and Quality Inspection Points

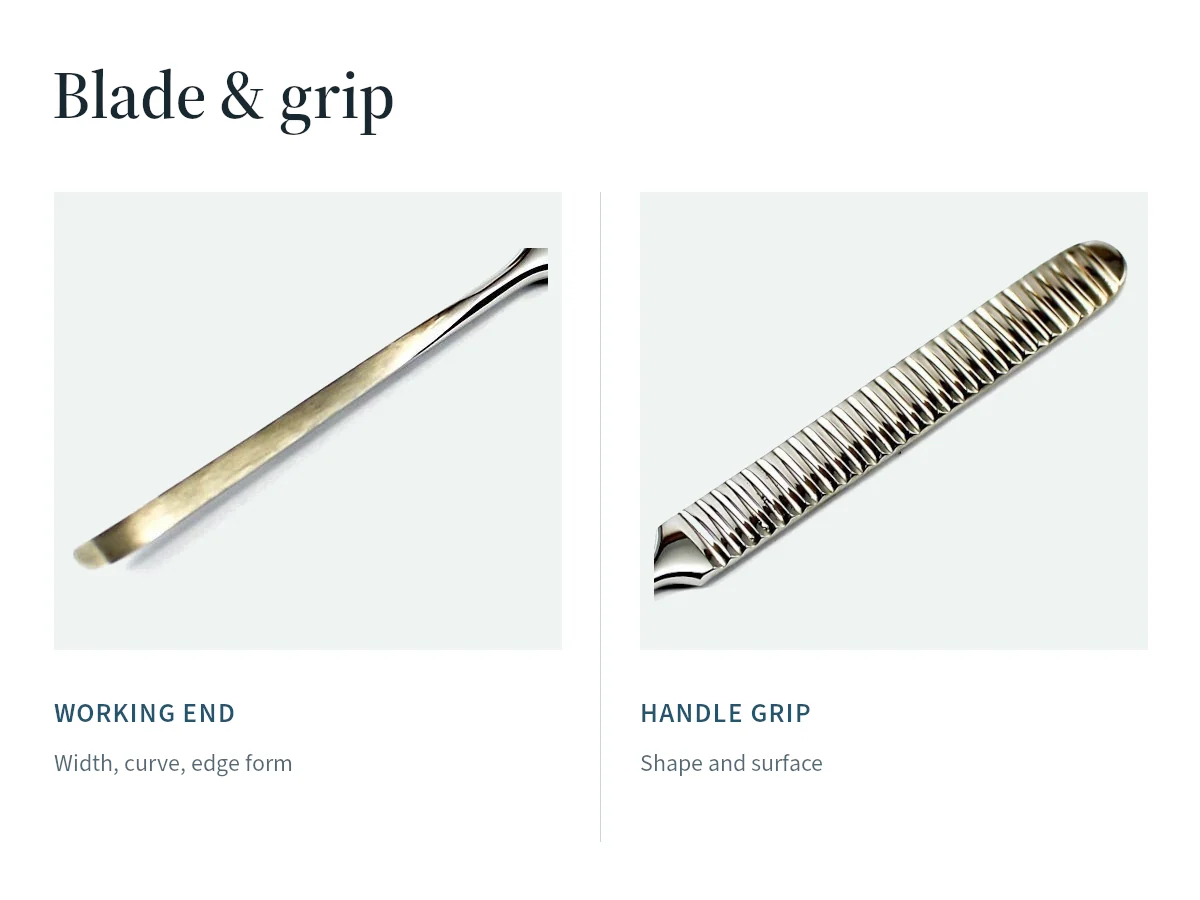

For a reusable periosteal elevator, quality inspection should cover symmetry, blade profile, edge consistency, shank alignment, handle security, finish, and the transition between working end and shank. A working end that is visibly twisted, uneven, burred, or poorly blended should not pass final inspection. The instrument should match the approved sample or drawing, particularly when a repeat order is intended to replenish an established kit.

The Sialkot manufacturing workflow for reusable hand instruments includes material selection, forming, heat treatment where the design requires it, grinding, finishing, cleaning, marking, inspection, and export packing. Material grade is confirmed at the quoted SKU level. AISI 420 is commonly used for many load-bearing dental hand instruments, but the appropriate grade depends on the working-end requirement; this guide does not assign one grade to every periosteal pattern.

• See the Sialkot manufacturing workflow
• Compare dental instrument materials

MOQ, Packaging, and Export Specification

Minimum quantities depend on the commercial format. Evaluation samples can be requested in small quantities, standard catalog minimums are confirmed with the quote, mixed wholesale orders can combine instrument families, and OEM or custom work uses higher pattern-level minimums. This structure lets a practice evaluate one pattern while giving distributors a documented route to private-label production. The quotation should identify which order type applies instead of presenting one universal MOQ.

Verified packaging options include individual protective pouches, procedure-set or cassette packing, labelled mixed cartons, bulk protective packing, and branded packaging for approved OEM orders. Export shipments are prepared with the commercial invoice, packing list, protective outer packaging, and tracking or freight documentation appropriate to the order. Certification files are a separate evidence layer and will be attached only after the owner provides the current documents.

Building a Clear Periosteal Elevator Purchase List

A useful purchase line reads like a specification: “Molt #9 double-ended periosteal elevator, narrow and broad working ends, requested handle style, satin finish, quantity, marking, and packaging.” For a Prichard, Freer, Woodson, Allen, or Buser pattern, replace the name and add the relevant figure, blade dimensions, orientation, or anterior/posterior designation. If the buyer needs an equivalent to an existing instrument, include a sample or dimensioned reference rather than asking for the “same type.”

Different pages here serve different steps of a purchase. This guide explains how the periosteal patterns differ; the surgical category shows the elevator alongside other oral-surgery instruments you may need together; the Molt product page supports a quote for that specific pattern; and the extraction tray guide shows where periosteal instruments fit into a complete setup. Move through them in whichever order matches your buying stage.
