Dental Instrument Materials and Stainless Steel Grades

What Are Dental Instruments Made Of?

Most reusable dental instruments are made from surgical-grade stainless steel, an iron alloy containing at least 12 percent chromium. The chromium forms a passive chromium-oxide layer that resists rust, which is why stainless steel tolerates saliva, blood, and repeated autoclave cycles. Cutting instruments such as scalers, curettes, scissors, and forceps use hardenable martensitic grades, while retractors and other non-cutting instruments often use tougher, more corrosion-resistant austenitic grades.

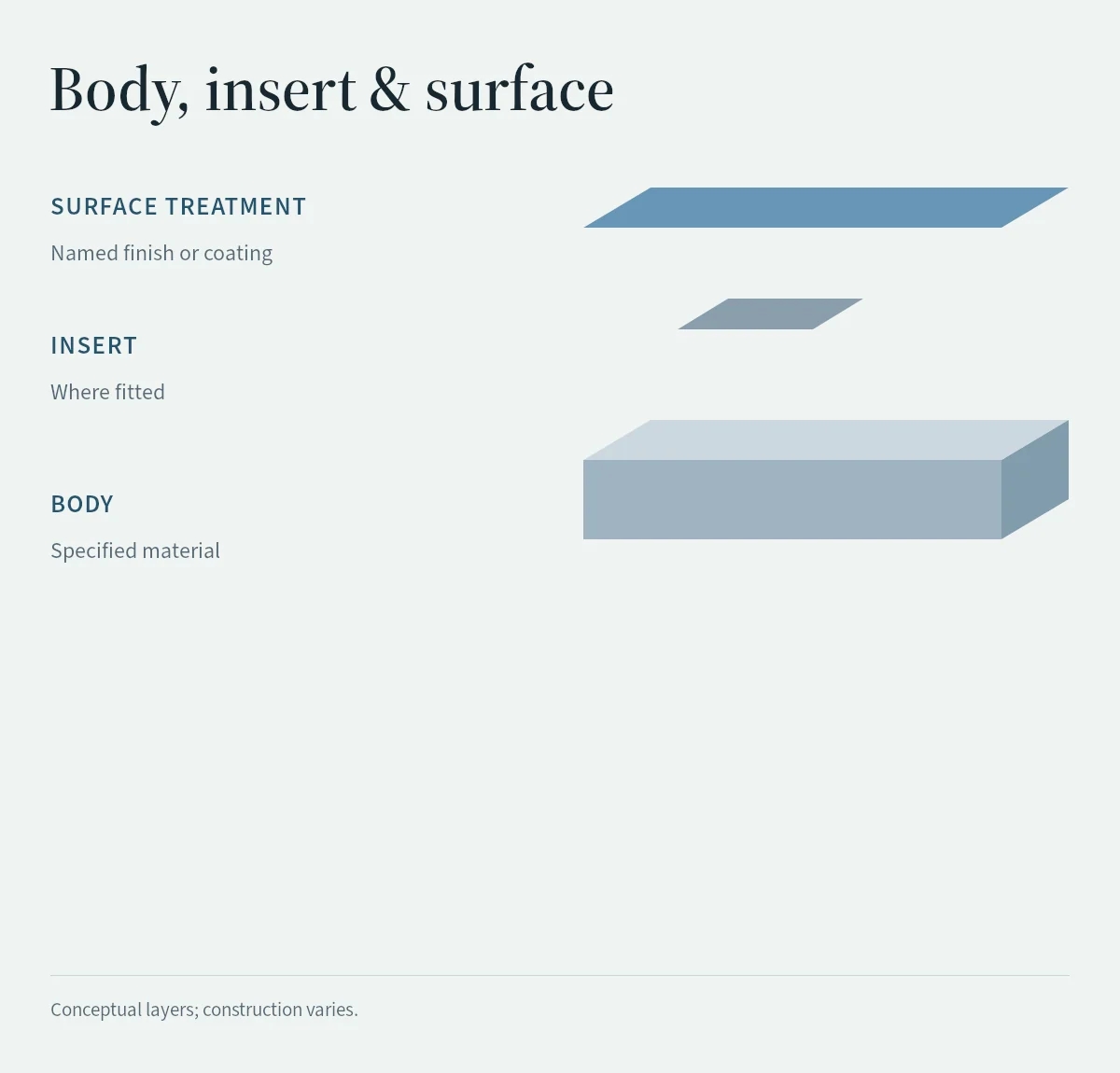

The alloy is only part of the story. Forging method, heat treatment, surface finish, and passivation each change how the finished instrument performs. Two instruments cut from the same grade of steel can differ significantly in edge retention and corrosion resistance depending on how they were manufactured.

Stainless Steel Grades Used in Dental Instruments

Martensitic stainless steels are the dominant material for cutting and load-bearing dental instruments because they can be hardened by heat treatment. Common grades include AISI 410, 420, 420J2, 431, and the 440 series (440A, 440B, 440C). AISI 420 and 420J2 balance hardness, corrosion resistance, and cost for general instruments, while 440-series steels reach higher hardness and edge retention for fine cutting instruments such as scalers, curettes, and scissors.

Austenitic stainless steels such as AISI 304 (18/8) and 316 cannot be hardened by heat treatment but offer higher corrosion resistance and toughness. These grades suit non-cutting instruments including retractors, impression trays, and instrument cassettes. Selecting the grade is a trade-off: higher hardness improves cutting edges, while higher chromium and nickel content improves corrosion resistance.

• Periodontal scalers and curettes
• Dental scissors
• Instrument cassettes and trays

Hardness, Edge Retention, and the Rockwell Scale

Instrument hardness is measured on the Rockwell C scale (HRC), and the target hardness depends on instrument function. Forceps and elevators are typically hardened to roughly 40 to 48 HRC so they resist bending and absorb extraction forces without cracking. Cutting instruments such as scalers, curettes, and scissors are hardened higher, commonly 50 to 58 HRC, so their edges stay sharp through more use and sharpening cycles.

Higher hardness improves edge retention but reduces toughness, so manufacturers temper the steel after hardening to reach a controlled balance. An instrument that is too soft loses its edge quickly; one that is too hard becomes brittle and can chip. Consistent, correctly tempered hardness is a reliable signal of a well-manufactured instrument.

Corrosion Resistance and Passivation

Corrosion resistance in dental instruments comes from the passive chromium-oxide layer on the steel surface. Passivation is a finishing process, usually with nitric or citric acid, that removes free iron from the surface and strengthens this protective layer. Instruments that skip proper passivation are more likely to develop rust spots, pitting, and staining during sterilization.

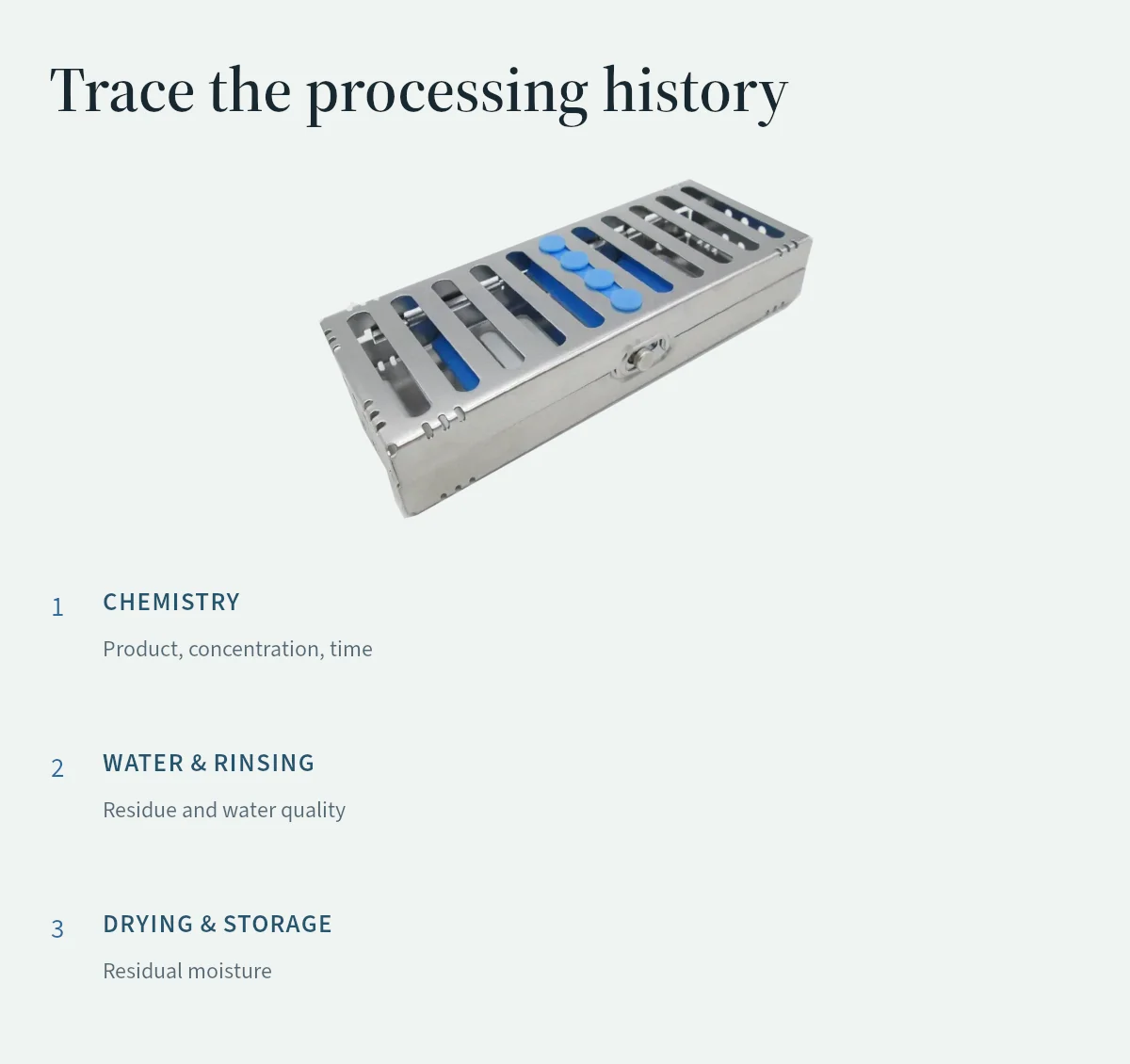

Corrosion is also influenced by use and reprocessing. Chloride exposure, harsh chemicals, mixed metals in an ultrasonic bath, poor water quality, and storing wet packs can all break down the passive layer. Thorough cleaning, drying, and correct sterilization protect the material investment as much as the original steel grade does.

• Instrument sterilization guide

Forging, Heat Treatment, and Finishing

Hand-forged instruments are shaped from solid steel bar under repeated compressive force, which aligns the grain structure and produces a stronger instrument than stamping thin sheet metal. Sialkot, Pakistan is one of the world's largest hubs for hand-forged dental and surgical instrument manufacturing, supplying hospitals, clinics, and distributors in well over 100 countries. After forging, instruments are hardened, tempered, ground to their working shape, and finished.

Surface finish affects both performance and hygiene. A satin finish reduces glare under operatory lighting and hides minor wear, while a mirror polish is smoother and easier to clean but reflects more light. Both finishes are appropriate when the instrument is correctly passivated and inspected. Finish is a preference and workflow decision rather than a strict quality ranking.

• How dental instruments are made
• How to evaluate dental instrument quality
• TDAP report on the surgical and medical instruments industry of Pakistan
