Fourteen rotary tools in four groups: five blue titanium-coated trephines (3–7 mm), five tissue punches (3.5–5.5 mm), two guide punches (4 and 5 mm) and two discs (7 and 10 mm). A storage and sterilization cassette is supplied in addition.

Listed pricing
Set $89.95Set $58.47Black Friday 202635% OFFYou save: Set $31.48Offer ends in13days09hrs19min19sec35% off all dental and surgical instruments, including listed and quoted product prices. No code needed. Shipping and taxes are separate.
In stock. Final price depends on the selected configuration and order requirements.
Product code
DIS-DEN-0367
Material
Stainless steel
Finish
Titanium coating on the five blue trephines
Size
Trephines 3–7 mm; tissue punches 3.5–5.5 mm; guide punches 4 and 5 mm; discs 7 and 10 mm
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Bone Trimmer Kit

Our Bone Trimmer Kit organises 14 rotary cutting tools into four groups in a single cassette: five trephines, five tissue punches, two guide punches and two discs. The storage and sterilization cassette is supplied in addition to the 14 tools. Each group covers a run of sizes, and the five blue titanium-coated trephines stand out at a glance, so the right cutter is quick to find.

The 14 tools

  • 5 trephines, blue titanium-coated: 3, 4, 5, 6 and 7 mm
  • 5 tissue punches: 3.5, 4, 4.5, 5 and 5.5 mm
  • 2 guide punches: 4 and 5 mm
  • 2 discs: 7 and 10 mm

The cassette holds the set and is not counted among the 14 tools.

Pick the tool form first, then the size

Several sizes repeat across the groups, so choose the tool form first:

  • Trephines are hollow cutting tubes that cut around a cylinder of bone. Five diameters from 3 to 7 mm give you a full millimetre series.
  • Tissue punches cut a circular section of soft tissue. They run in half-millimetre steps from 3.5 to 5.5 mm, so you can match the punch closely to the diameter you need.
  • Guide punches, in 4 and 5 mm, are a separate punch form alongside the tissue punch series.
  • Discs, in 7 and 10 mm, are the flat cutting tools of the set.

A 4 mm trephine, a 4 mm tissue punch and a 4 mm guide punch are therefore three different tools, even though they share a number.

Sizes, coating and care

Each figure is the labelled diameter of that tool. If you need the trephines matched to an inner- or outer-diameter convention you already work with, include your reference sizes in your enquiry. The tools are stainless steel, and the titanium coating is applied to the five blue trephines. The kit is reusable and autoclavable; reprocess it according to the instructions supplied with this model.

Ordering

To price your order, request a quote with the number of kits, the rotary connection your handpiece requires, and any packing or document needs. For expansion screws or sinus-access instruments, browse our other implant kits.

Find each tool group and reorder the right 4 mm tool

Use the cassette layout to recognise the four tool groups, then write a separate request line for each tool you need.

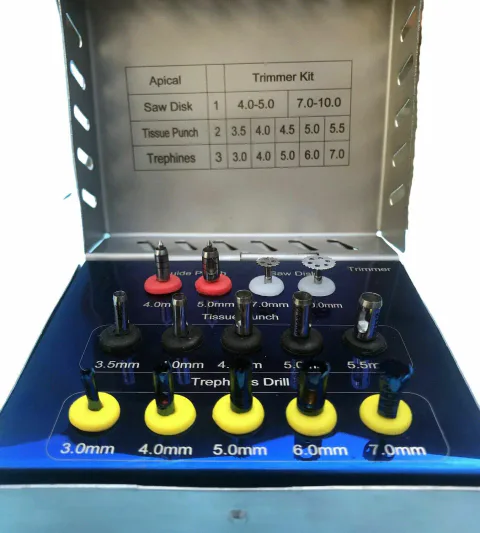

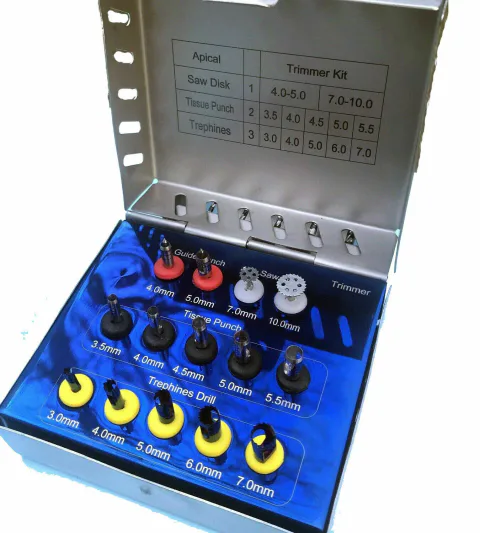

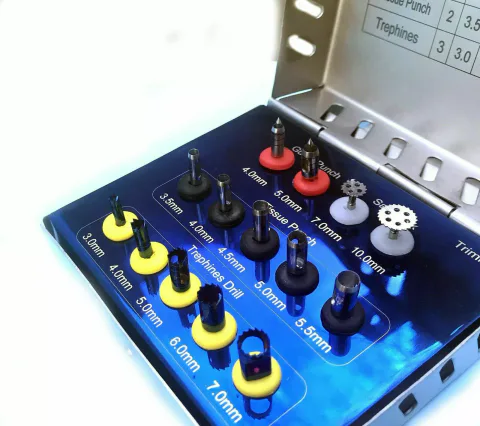

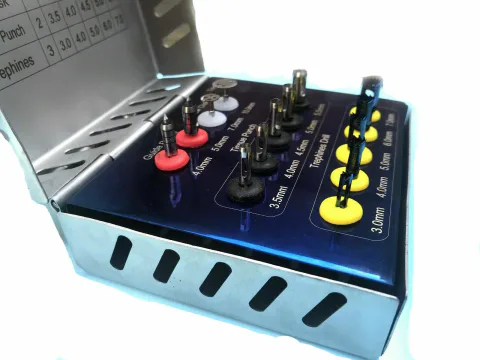

Find the four groups in the cassette

The photo shows all 14 tools in four groups. The holder colours help you find each group in this cassette.

Tool groups as pictured
Group and holdersSizes (mm)How to recognise it
5 trephines, yellow holders3, 4, 5, 6, 7Blue, hollow toothed tubes; front row
5 tissue punches, black holders3.5, 4, 4.5, 5, 5.5Plain tubular ends; middle row
2 guide punches, red holders4, 5Pin-centred ends; rear left
2 discs, white holders7, 10Flat toothed discs; rear right
Bone trimmer kit with five blue trephines in yellow holders, five tissue punches in black holders, two guide punches in red holders and two flat discs in white holders

All 14 tools seated by group: 5 + 5 + 2 + 2.

  1. Trephines

    Front row, yellow holders

  2. Tissue punches

    Middle row, black holders

  3. Guide punches

    Rear left, red holders

  4. Discs

    Rear right, white holders

  5. Cassette

    Supplied in addition; it is not a 15th tool

Why each 4 mm tool needs its own line

Three tools carry a 4 mm label. The size alone does not tell us which one you mean, so name the group as well.

  • Kit: Bone Trimmer Kit, DIS-DEN-0367
  • Line: guide punch, 4 mm, quantity 1
  • The rotary connection your handpiece requires
  • For complete kits, count 14 tools plus 1 cassette per kit: three kits give 42 tools and 3 cassettes
Three different 4 mm tools
Request lineTool you mean
Trephine, 4 mmBlue hollow toothed tube, yellow holder
Tissue punch, 4 mmPlain tube, black holder
Guide punch, 4 mmPin-centred punch, red holder
Have experience with Bone Trimmer Kit?Share verified buyer or evaluator feedback. It takes about a minute.

Bone Trimmer Kit Questions

Is this a surgical instrument kit or a dental model-trimming machine?

It is a kit of rotary cutting tools for use in a handpiece: 14 trephines, punches and discs held in a storage and sterilization cassette. It is not a motorized laboratory machine for trimming plaster models.

How do the trephines, tissue punches and discs differ?

The five trephines are hollow cutting tubes that cut around a cylinder of bone. The five tissue punches cut a circular section of soft tissue, and the two guide punches are a separate punch form. The two discs are the flat cutting tools of the set. Because sizes such as 4 mm appear in more than one group, choose the tool form first and then the size.

Which counts and sizes are supplied?

There are 14 tools. The five trephines are 3, 4, 5, 6 and 7 mm. The five tissue punches are 3.5, 4, 4.5, 5 and 5.5 mm. The two guide punches are 4 and 5 mm, and the two discs are 7 and 10 mm. The storage and sterilization cassette is supplied in addition.

Which tools are titanium-coated?

The five blue trephines carry a titanium coating over stainless steel. That is the component-specific coating specification for this offer; do not use it as a coating specification for the punches or discs.

Do the guide punches make the kit compatible with fully guided surgery?

The kit is not specified for a particular guided-surgery system. Fit with a surgical guide depends on that system's sleeves, keys and handpiece interface. If you intend to use the guide punches with a guide, send the system and sleeve details with your enquiry so we can check them before quoting.

What should I tell you when ordering?

Tell us the number of kits, the rotary connection your handpiece requires, and any packing or document requirements. If you work to a specific trephine diameter convention, include your reference sizes too.
