Dental Implant Instruments

Crown Positioning Guide Kit

Implant positioning kit with 1.6 mm and 2.0 mm externally irrigated initial drills, four stops (6–11.5 mm), six crown guides (6–12 mm) and matching guide pins. AISI 420 stainless steel, polished, reusable and autoclavable.

Listed pricing
Set $109.95Set $71.47Black Friday 202635% OFFYou save: Set $38.48Offer ends in13days09hrs19min18sec35% off all dental and surgical instruments, including listed and quoted product prices. No code needed. Shipping and taxes are separate.
In stock. Final price depends on the selected configuration and order requirements.
Product code
DIS-DEN-0355
Material
AISI 420 stainless steel
Finish
Polished
Size
Initial drills 1.6/2.0 mm; stops 6–11.5 mm; crown guides and pins 6–12 mm
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Crown Positioning Guide Kit

This crown positioning guide kit pairs two initial drills with physical crown guides, matching pins and stops. With it, the space the future crown will occupy can be referenced at the initial drilling stage. The kit contains a 1.6 mm and a 2.0 mm externally irrigated initial drill, four stops, and six crown guides from 6 to 12 mm with matching pins. Used alongside the clinician's own plan and the implant system's instructions, the guides give a physical reference that links the initial drilling position to the planned restoration. Every instrument is polished AISI 420 stainless steel, reusable and autoclavable.

What is in the kit, and what each size refers to

The kit is organised in four groups, and each group's numbers describe something different:

  • Initial drills: 1.6 mm and 2.0 mm, one of each, for external irrigation. These are drill diameters.
  • Stops: four, marked 6, 8, 10 and 11.5 mm. These are the stops' own size markings.
  • Crown guides: six, sized 6, 7, 8, 9, 10.5 and 12 mm. These sizes refer to crown space.
  • Crown-guide pins: in the same six sizes, labelled to match their guides.

Several numbers repeat across groups. Only the 6 and 8 mm markings appear on both a stop and a crown guide; the 10 mm stop and the 10.5 mm crown guide and pin are different references. The 12 mm marking belongs to the largest crown guide, while the largest drill is 2.0 mm. Keeping the groups apart makes the kit quicker to check and reassemble after each reprocessing cycle. Use the instructions supplied with the kit to relate the stop markings to your protocol.

Physical guides rather than a patient-specific template

This kit belongs to the physical-guide approach: crown guides, pins and stops for positioning and spacing at the initial drilling stage. A fully guided workflow is built around a patient-specific template with defined sleeves and offsets, and it uses the components that guided system specifies. If you are choosing between the two approaches, this kit is for the first.

If your purchase list specifies a single 2.0 mm pilot drill and a different guide layout, compare the itemized components across our implant drill guide and positioning kits. This crown positioning guide kit pairs a 1.6 mm and a 2.0 mm initial drill with its own crown guides, pins and stops.

Preparing your enquiry

Tell us how many kits you need and which implant system and drill interface you work with, so we can check them against the kit as described. Also confirm that the 1.6 mm and 2.0 mm initial drills suit your protocol, and note any packaging or documentation your purchasing team requires. Send these details when you request a quote. Related surgical kits are in our dental implant instruments range.

Compare implant positioning kits

  • Pilot Drill & Positioning Guide Set

    DIS-IMP-POS-GRP-POS

    2.0 mm pilot

    Guide/pin markings 6.0, 7.5, 9.0, 10.5 and 12.0 mm

    Five drill-labelled assemblies, five spacers and red holder

  • 15-Piece Implant Guide Kit

    DIS-IMP-POS-GRP-15PC

    4.0 and 4.5 mm tissue punches

    Stopper drills

  • Crown Positioning Guide Kit

    DIS-DEN-0355

    1.6 and 2.0 mm initial drills

    Four stops marked 6, 8, 10 and 11.5 mm

    Crown guides and matching pins marked 6, 7, 8, 9, 10.5 and 12 mm

Checking the 18 instruments and ordering by component

The kit holds 18 instruments in four groups. Knowing which numbers belong to which group makes the case faster to check and a replacement request clearer.

The 18 instruments by group

Drills, stops, guides and pins arrive together in one case, so you do not have to source and organise four groups separately. Each crown guide has a pin of the same size, which gives six guide-and-pin pairs. Use this list for a quick check that every position is filled after reprocessing.

  • 6 mm and 8 mm: on a stop and on a crown guide with its pin
  • 10 mm: stop only
  • 10.5 mm: crown guide and pin only
  • 11.5 mm: stop only
  • 7, 9 and 12 mm: crown guide and pin only
Component groups, markings and counts
GroupMarkingsCount
Initial drills1.6 and 2.0 mm (drill diameter), external irrigation2
Stops6, 8, 10 and 11.5 mm4
Crown guides6, 7, 8, 9, 10.5 and 12 mm (crown space)6
Crown-guide pins6, 7, 8, 9, 10.5 and 12 mm, matching the guides6
Total instrumentsFour groups18
CaseHolds all four groupsNot counted

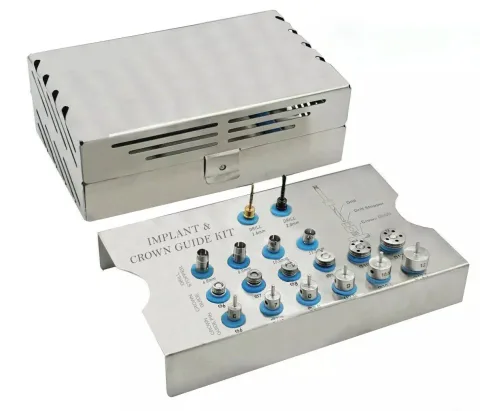

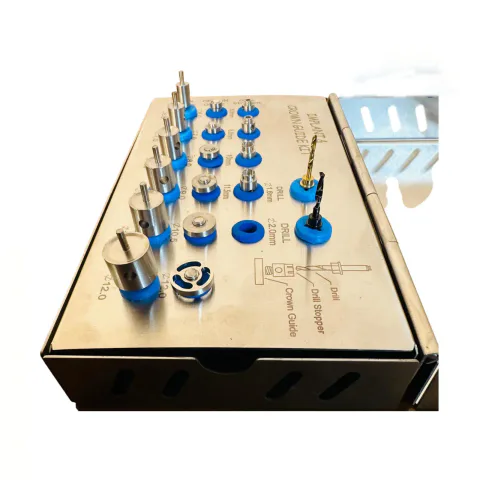

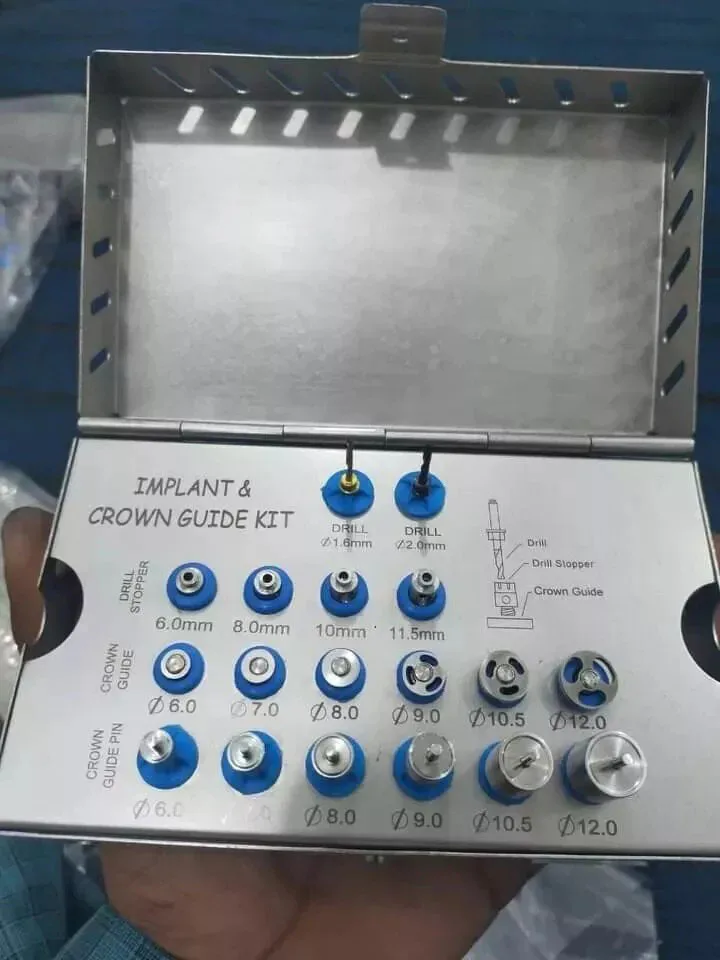

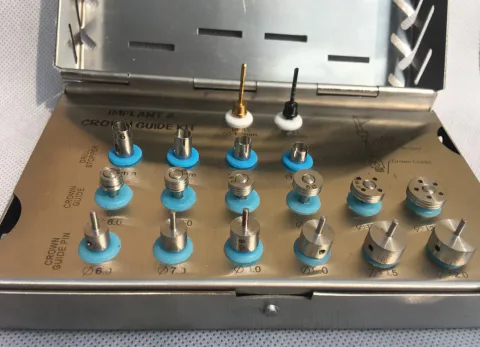

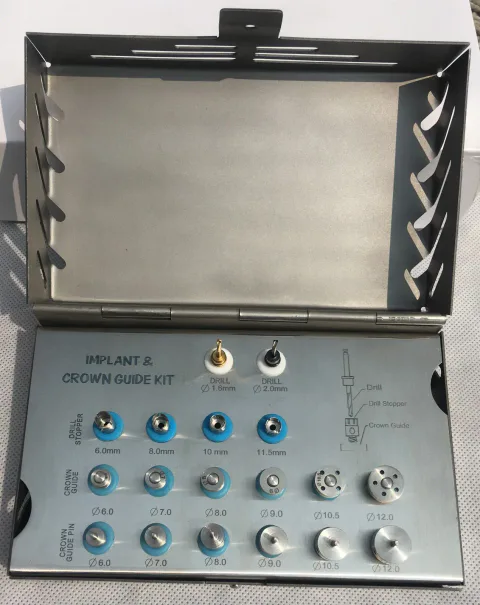

Open crown positioning kit case showing two initial drills, four stops, six crown guides and six matching pins in labelled rows

Kit case, front view

  1. Rear row

    Two initial drills.

  2. Second row

    Four stops.

  3. Third row

    Six crown guides.

  4. Front row

    Six matching pins.

  5. Labels

    The case labels show 10 mm in the stop row and 10.5 mm in the guide and pin rows.

Requesting the kit or a single component

Example request: "DIS-DEN-0355: 3 complete kits. Separately, please quote one crown guide 10.5 mm and one crown-guide pin 10.5 mm to complete an existing kit. These are not the 10 mm stop."

  1. Give the kit code

    Quote DIS-DEN-0355 and the number of complete kits.

  2. Name the group and marking

    For a single part, give both the group and the marking, such as "crown-guide pin, 10.5 mm". A number on its own could refer to more than one group.

  3. Add your setup

    State the implant system and drill interface so we can check them against the kit.

  4. Note packaging needs

    List any documentation or packaging your purchasing team requires.

Have experience with Crown Positioning Guide Kit?Share verified buyer or evaluator feedback. It takes about a minute.

Crown Positioning Guide Kit Questions

Is this a physical positioning kit or a fully guided implant-surgery system?

It is a physical positioning kit. Crown guides, pins and stops give a hands-on reference at the initial drilling stage. A fully guided workflow is built around a patient-specific template with defined sleeves and offsets, and it uses the components its own guided system specifies. That template is not part of this kit.

Is this kit used to seat or cement a crown?

No. 'Crown' refers to the future crown space that the guides represent. The kit contains surgical positioning instruments for the initial drilling stage of implant site preparation.

Which initial drills are included, and how are they irrigated?

Two initial drills are included, one 1.6 mm and one 2.0 mm. Both are designed for external irrigation.

Do the crown-guide sizes, drill sizes and stop markings measure the same thing?

No. The drills are 1.6 mm and 2.0 mm in diameter. The six crown guides, sized 6, 7, 8, 9, 10.5 and 12 mm, refer to crown space, and their pins carry matching sizes. The four stops are marked 6, 8, 10 and 11.5 mm. Use the instructions supplied with the kit to relate those markings to your protocol.

What should I check before using this kit with my implant setup?

Confirm that the 1.6 mm and 2.0 mm initial drills suit your implant system's protocol, and identify the drill connection your handpiece requires. Send your implant system and drill interface with your enquiry so we can check them against the kit as described.

Can the kit be autoclaved?

Yes. All instruments are reusable and autoclavable. Reprocess them following the instructions supplied with the kit and your facility's validated process.
