About Gracey Curette Set (7 Pcs)

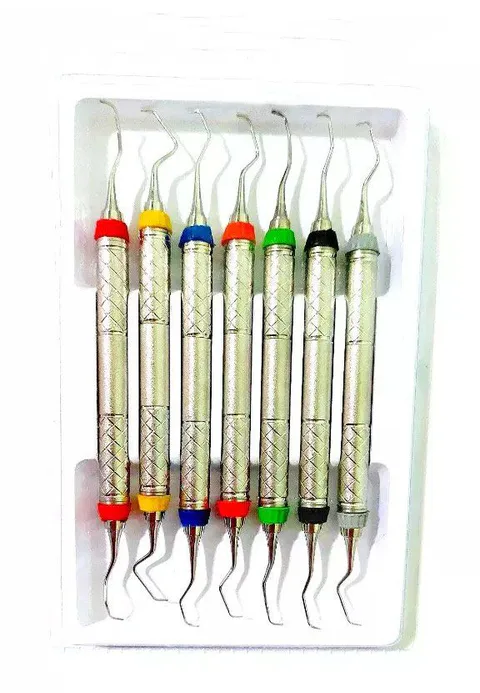

This seven-piece Gracey curette set contains the fixed figure sequence 1/2, 3/4, 5/6, 7/8, 9/10, 11/12 and 13/14. It is intended for buyers who need those seven documented patterns as one set. The page complements our broader Gracey Curettes product family, where individual figures and other configurations can be quoted separately.
The Seven-Line Set Schedule
The approved bill of materials should list one instrument for each of these positions:
- Gracey 1/2
- Gracey 3/4
- Gracey 5/6
- Gracey 7/8
- Gracey 9/10
- Gracey 11/12
- Gracey 13/14
This sequence is the identity of the standard set. A marketplace set using a different figure pair is not assumed to be equivalent, even if it also contains seven instruments.
Figure Pairs and Area-Specific Selection
Gracey curettes use an area-specific blade design with the face offset relative to the terminal shank and one lower cutting edge designated as active. The common selection reference places 1/2 and 3/4 with anterior areas, 5/6 with anterior and premolar areas, 7/8 and 9/10 with posterior facial and lingual areas, 11/12 with posterior mesial surfaces and 13/14 with posterior distal surfaces. Clinical selection remains the responsibility of the trained professional and facility protocol.
Shared and Figure-Specific Specifications
All seven instruments should be approved with the same handle family, material and finish unless a mixed configuration is requested. For each figure, confirm blade length and width, terminal-shank length and angulation, overall length, handle diameter or profile and visible figure marking. The offset face and working-end geometry should be checked against the controlled drawing or marked sample.
Fixed Set, Replacements and Substitutions
The standard offer is the fixed seven-pattern set. Individual replacement instruments can be ordered from the broader Gracey range by figure, handle and specification. A substitution within this set is not made silently; if the buyer requests a different figure, the final BOM and product description must be revised and approved.
Material, Finish and Set Presentation
The current set is specified in forged stainless steel with a satin finish. The quotation should state whether the instruments are supplied in a cassette, pouch or other documented pack. Inspection can cover blade and shank geometry, working-edge condition, handle consistency, figure markings, surface finish and the seven-item count.
We manufacture under ISO 9001:2015 quality management certification. Private-label markings, packaging, MOQ and material evidence are confirmed against the approved order.
Request a Quote
Send the seven-pattern set reference, required handle, finish, markings, cassette or pouch, quantity, branding and destination country. If a non-standard combination is needed, list every replacement figure so we can quote it as a clearly documented custom configuration.
