About Offset Concave Osteotome Set, 5 Pieces

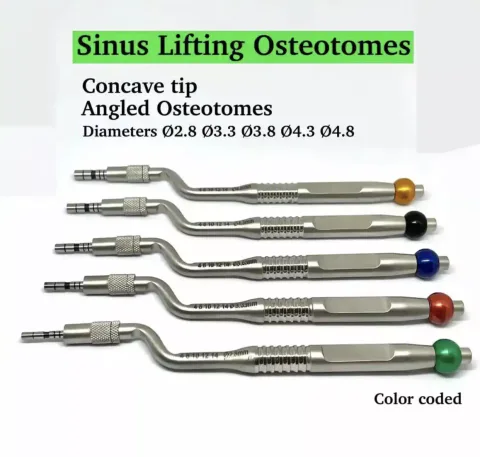

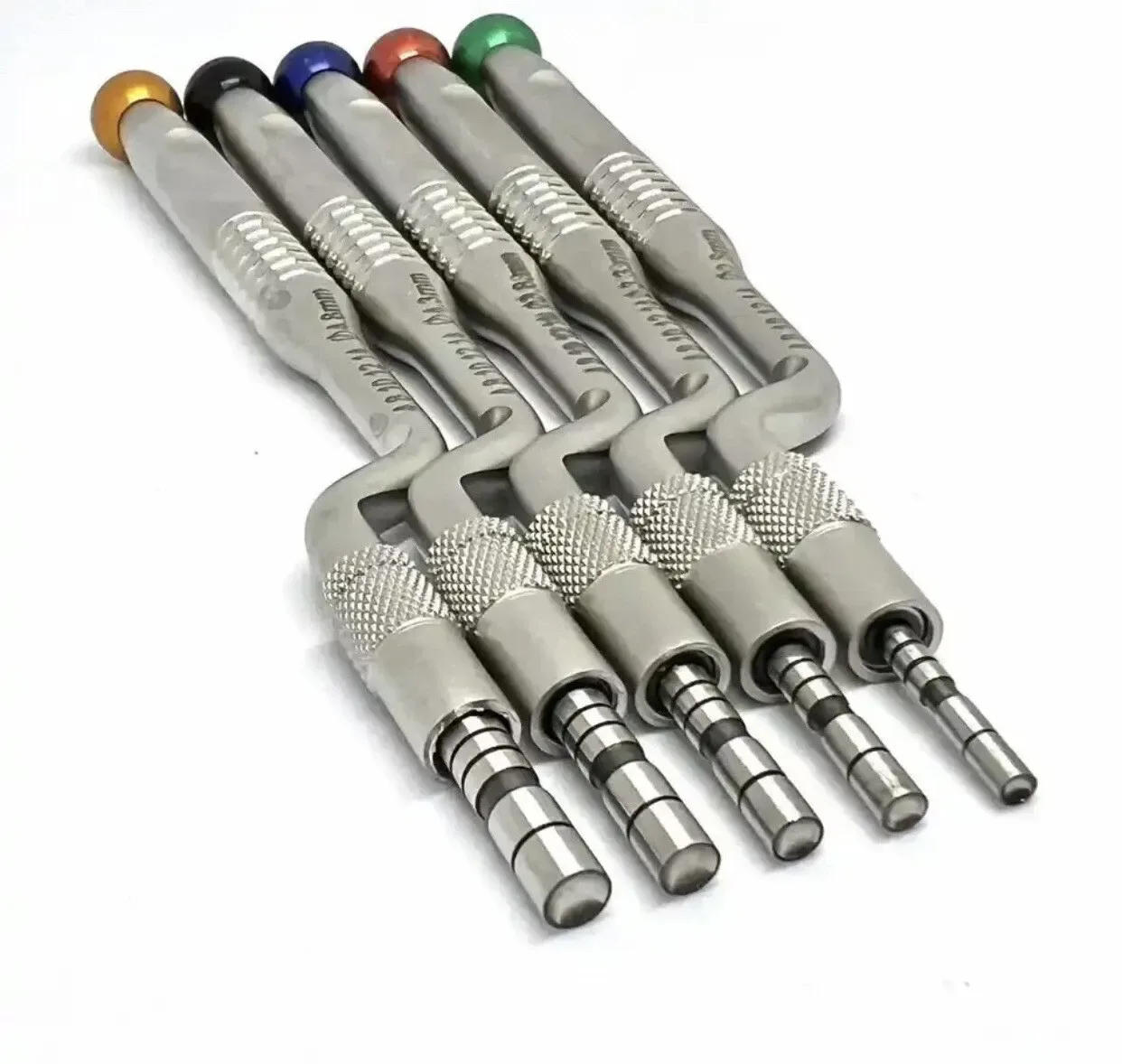

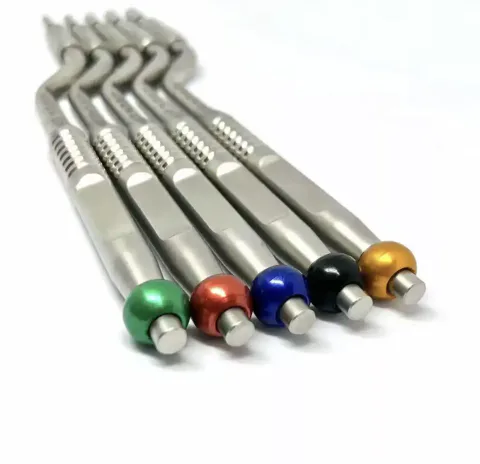

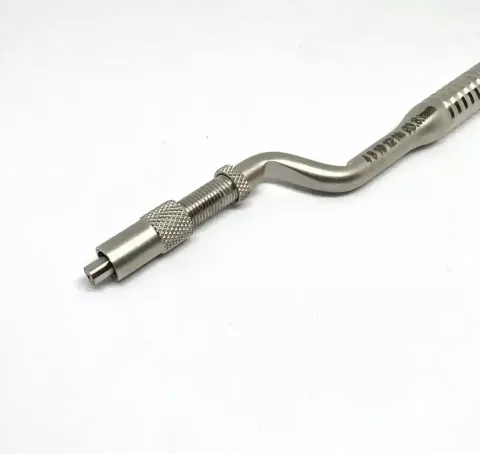

This five-piece offset concave osteotome set has nominal diameter references of 2.8, 3.3, 3.8, 4.3 and 4.8 mm. The owner photographs show five offset hand instruments with colour-coded ends. This is a different assortment from the straight-and-curved osteotome schedule on our wider kit page.
Five offset instruments, not ten paired patterns
The set contains one instrument at each listed diameter reference. All five have an offset form; straight counterparts are separate instruments. Each complete osteotome counts once, irrespective of the number of close-up or group photographs. No mallet, well pot or cassette is established as an included item for this configuration.
Understand the dimension labels

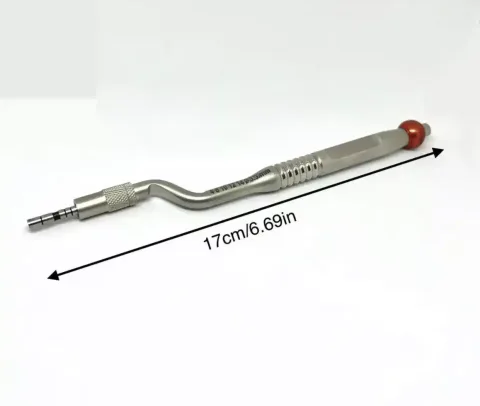

Nominal diameter references are 2.8, 3.3, 3.8, 4.3 and 4.8 mm, with a 17 cm overall-length reference. Confirm measured dimensions for your order. Confirm measured diameters and tolerances for the quoted set. Confirm the delivered-model drawing and tolerances before buying to a measured specification. A diameter label does not define the full taper, tip recess or every shaft diameter.

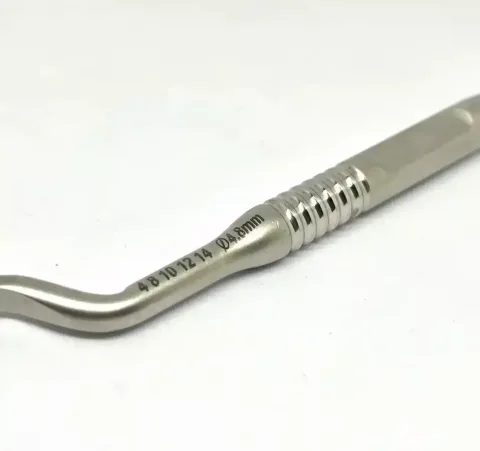

The visible graduations are identification features, not an instruction for clinical depth or a validated depth-control system. Overall length also differs from working length. When matching an instrument, specify the tip profile, diameter measurement location, usable working length and offset geometry.
Compare the correct osteotome assortment
Our five-size selection ends at 4.8 mm. Do not replace that value with 5.0 mm from another manufacturer’s kit or substitute the separate 2.6/3.1/3.8/4.5/5.0 mm catalog sequence. Colour coding is a visual aid, not a universal cross-brand size standard.
These are manual hand instruments, not implant drills or expanders with a rotary connection. No implant-system compatibility, force value or procedural sequence is claimed from their appearance.
Documentation and ordering
For professional dental use, obtain the supplied-model instructions before use or reprocessing. Material grade, maintenance and processing requirements must apply to the actual delivered instruments. Send DIS-IMP-OST-OFF5, number of sets, destination and any dimensional-inspection requirements. Specify storage accessories separately if required, and identify an individual replacement by both diameter reference and offset geometry.
Measurement research and instruction references
These sources describe other manufacturers’ reference models. They do not establish the manufacturer, exact dimensions, compatibility or validated instructions for the instrument we supply. Use the supplied model’s drawing and IFU for those details.
- ebook.camlog.com: product reference — Manufacturer context for angled concave osteotomes and model-specific size assortments; its final diameter and system compatibility are not transferred. Reviewed 2026-09-12.
- www.medesy.it: product reference — Hand-instrument family terminology; numerical values on this page come from the scoped owner-photo labels. Reviewed 2026-09-12.
