Implant Prosthetic Instruments
Implant Abutment Preparation Holder
Collet-style holder that grips an implant abutment firmly outside the mouth while it is shaped, prepared or adjusted in the laboratory. Three-piece set.
Choose the Abutment Preparation Holder and Match Its Inserts
This category lists one prosthetic instrument: a three-piece, collet-style holder that grips an implant abutment outside the mouth while you shape, prepare or adjust it in the laboratory. You hold a comfortable tool instead of the small part itself, so you can work on the abutment with control. This guide does three things. It separates the holder from tools that place or tighten abutments, explains the photo, and lists the grip-region details we need to match the inserts.
Preparation Holder or a Placement, Driving or Torque Tool?
Choose the preparation holder when you need to keep an abutment steady at the bench while it is ground or adjusted. If you need to carry, seat or tighten an abutment, you need a different tool, and this page does not list one. The holder's collar threads only tighten its own collet. They are not an implant screw connection.
| Selection | What it includes | When to choose it |
|---|---|---|
| Implant Abutment Preparation Holder, three-piece set | The holder and its inserts: a tubular body, threaded end collars and split-collet inserts. Each piece and insert size is itemised in your quotation. | You want to hold an abutment firmly outside the mouth while you shape, prepare or adjust it with control |
| Abutment placement tweezers or carrying holder | Not listed on this page | You need to pick up and position an abutment. The preparation holder does not place abutments. |
| Screwdriver | Not listed on this page. A driver is matched by its tip profile and connection. | You need to turn an abutment or implant screw. Send your implant system and connection, and we keep it on a separate quote line. |
| Torque wrench | Not listed on this page. It is matched by its connection and the component's instructions. | You need to set tightening torque. The holder has no torque setting, so a wrench is quoted separately. |
What the picture helps identify

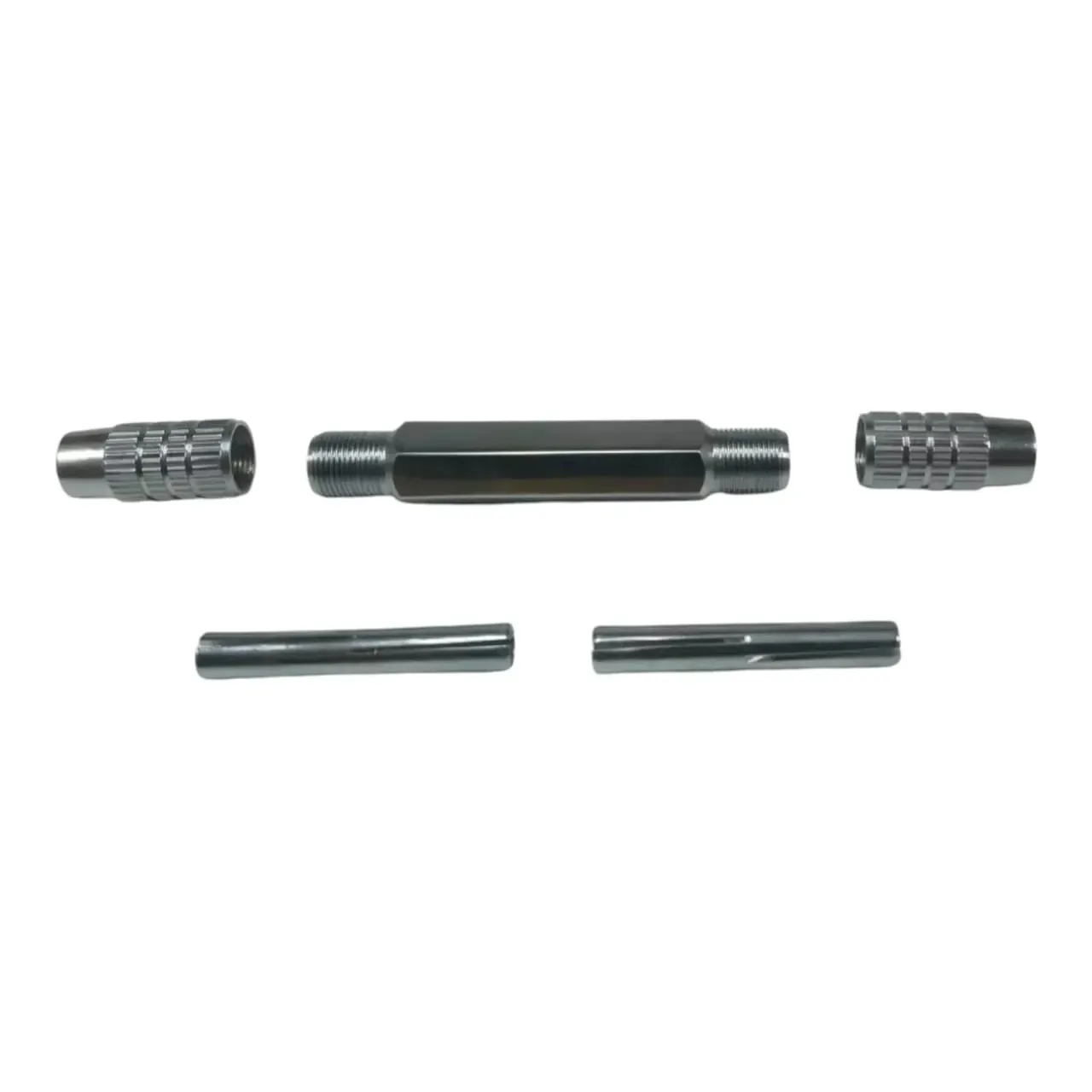

The holder taken apart as it is for cleaning. The photo shows how the parts fit together and is not a packing list. The supply unit remains the three-piece set (the holder and its inserts), and each piece is itemised in your quotation.
- Tubular body
Centre. The threaded part you hold like a handle. Each collar screws onto one of its threaded ends.
- Textured collar, left
Left of the body. Its textured surface gives you grip as you screw it on to tighten the collet.
- Textured collar, right
Right of the body. It tightens the collet in the same way at the other end.
- Two split inserts
Below the body. They close around the abutment's grip region as a collar is tightened.
Prepare a request or replacement record
Measure the region the insert actually closes on. It can differ from the widest part of the abutment or from the area you will shape. Record its diameter and the straight length available to grip, in millimetres, and note its shape. Then take one side view and one end view, with a scale in the frame if you have one. The quote form takes text only, so send the photos by email or WhatsApp.
Illustrative request, not a stock configuration: three three-piece sets for the abutment types listed, with grip-region measurements typed into the form and photos sent by email. The collet sizes offered are confirmed in your quotation, along with the itemised schedule of the three pieces.
Implant Prosthetic Instruments Selection Summary
| Specification | Details |
|---|---|
| Listed instrument | Collet-style abutment preparation holder, three-piece set |
| Parts | Tubular body, threaded end collars, split-collet inserts |
| Use | Holding an abutment outside the mouth while it is shaped, prepared or adjusted in the laboratory |
| Set contents | Three pieces, made up of the holder and its inserts; each piece and insert size is itemised in your quotation |
| Not a | Driver, torque wrench or implant screw connection |
| To match inserts | The abutments you prepare or their dimensions, especially the region the collet closes around |
Other Dental Implant Instruments Subcategories
Implant Drill Kits
An eight-drill surgical kit (2.0 to 5.2 mm, depth-marked) and conical drill and stopper kits in 25 to 55 pieces. Compare drills, s...
View SubcategoryGuided Implant Surgery Kits
Implant positioning kits with a 2.0 mm pilot drill and guides from 6.0 to 12.0 mm, plus a 15-piece option with 4 and 4.5 mm tissue...
View SubcategoryBone Expansion & Osteotome Kits
Screw-type bone expander kits (2.6–4.3 mm), a five-piece offset concave osteotome set (2.8–4.8 mm) and a nine-piece chisel and mal...
View SubcategoryBone Grafting & GBR Kits
A four-drill bone collector set (3.4, 4.0, 4.2, 5.2 mm) with metal holder, and GBR bone tack kits with titanium tacks in 2.5 and 3...
View SubcategoryImplant Prosthetic Instruments FAQ
What does the abutment preparation holder hold?
An implant abutment, outside the mouth, while it is shaped, prepared or adjusted in the laboratory. The abutment sits in a split-collet insert that closes around it as the end collar is tightened, and the tubular body is the part you hold like a handle.
Are the holder's collar threads an implant screw connection?
No. The threaded end collars tighten the collet around the abutment and belong to the holder alone. They do not connect to an implant or an abutment screw, and the holder places nothing and has no torque setting.
What do I need to send so the inserts match my abutments?
The abutments you prepare or their dimensions, with the part the collet closes around in view: its diameter and the length available to grip. Add the quantity of sets and your destination. We confirm that the collets hold your abutments securely and list each piece and insert size in the quotation.
What are the three pieces in the set?
The set is three pieces, made up of the holder and its inserts, sold together as a three-piece set. We itemise each piece and the insert sizes in your quotation so you can check them against your abutments before you order.
Is the holder a driver or a torque wrench?
No. It is for preparation only and never engages an implant component. A driver or torque wrench is chosen by its tip profile, its connection and the instructions for the component it turns, and none is listed on this page. Send your implant system and connection if you need one, and keep it on its own line.
How is the holder cleaned?
Take the collars and collets apart for cleaning and clear grinding debris from the threads, then follow the supplied processing instructions and your facility's validated protocol.
