Implant Prosthetic Instruments

Implant Abutment Preparation Holder

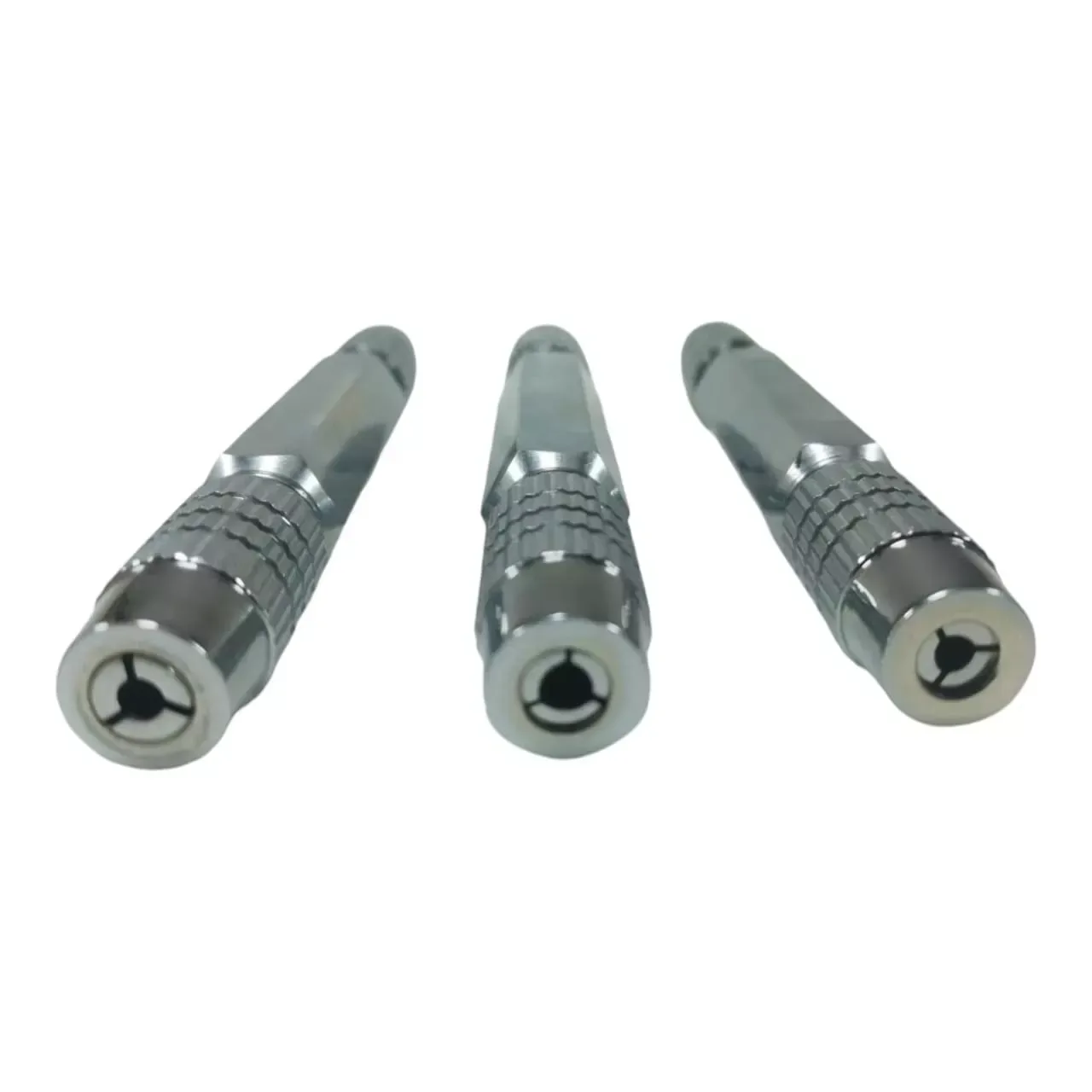

Collet-style holder that grips an implant abutment firmly outside the mouth while it is shaped, prepared or adjusted in the laboratory. Three-piece set.

Product code
DIS-IMP-ABH-COLLET
Size
Collet sizes confirmed in your quotation
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Implant Abutment Preparation Holder

Abutments often need shaping before the crown is made. They are small and hard to hold steady by hand while they are ground. An abutment preparation holder grips the abutment in a collet, so you can hold the tool comfortably and work on the abutment with control, outside the mouth.

How it is made

  • Tubular body that you hold like a handle.
  • Threaded end collars that tighten the collet.
  • Split-collet inserts that close around the abutment as the collar is tightened.

What the three pieces are

The set has three pieces, made up of the holder and its inserts. We list each piece and the insert sizes in your quotation, so you can check they suit the abutments you use.

Choosing the right inserts

Tell us the abutments you prepare, or their dimensions, and we confirm the collets hold them securely. The holder is for preparation only; it is not a driver or torque wrench for placing abutments.

Ordering

  • Sold as a three-piece set.
  • Evaluation samples are available.

Care

Take the collars and collets apart for cleaning, clear grinding debris from the threads, and follow the supplied processing instructions and your facility's validated protocol.

For other implant instruments, see our implant surgical drill kits.

Abutment holder guide: parts key and component-matching enquiry

This guide shows where each part of the collet-style holder sits, and sets out the details that let the inserts be matched to the abutments you prepare for a secure, controlled grip at the bench.

Parts of the holder

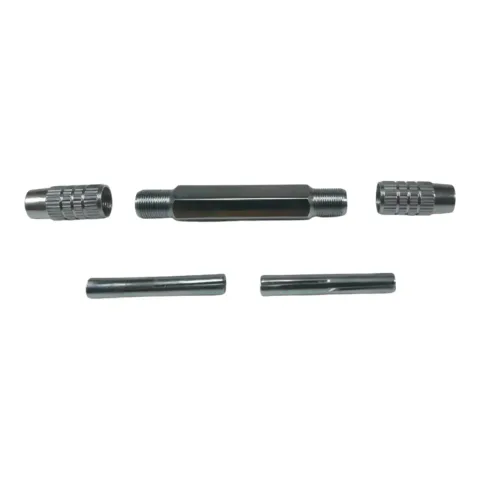

The photograph shows the holder taken apart, as it is for cleaning. It explains how the parts fit together and is not a packing list. The holder is sold as a three-piece set, itemised in your quotation.

Disassembled collet-style abutment preparation holder with the threaded tubular body at upper centre, a textured collar on each side and two split inserts below

Collet-style abutment preparation holder, disassembled.

  1. Tubular body

    Upper centre. The part you hold like a handle, threaded at each end.

  2. Threaded collars

    One either side of the body, with a textured surface. They screw onto the body and tighten the collet.

  3. Split inserts

    Below the body. They close around the abutment as a collar is tightened, providing the contact opening.

Matching the inserts to your abutments

The insert closes on one region of the abutment, its grip region. That region can differ from the widest part or from the area you will shape, so describe it directly.

Component-matching enquiry
DetailWhat to send
Abutments preparedType or system name, as recorded in your laboratory
Grip region diameterMeasured value with units
Grip region shapeRound, flat-sided or another profile
Usable engagementLength of the grip region available for the insert to close on
PhotosOne side view and one end view of the grip region
Holder part, if matching your ownBody, collar or insert, with a photo of that part
QuantityNumber of three-piece sets
  1. Measure the grip region

    Record its diameter and usable engagement length in millimetres, and note its shape.

  2. Photograph it

    Take a side view and an end view, with a scale in the frame if you have one.

  3. Send the enquiry

    Example: 3 three-piece sets for the abutments listed, measurements and photos attached. The collet sizes offered are confirmed in your quotation.

Have experience with Implant Abutment Preparation Holder?Share verified buyer or evaluator feedback. It takes about a minute.

Implant Abutment Preparation Holder Questions

Is an implant abutment preparation holder the abutment itself?

No. The holder is a tool that retains a suitable component during preparation work outside the mouth. Its body supports the holding assembly, and the held component is a separate object, which distinguishes a preparation holder from the abutment and from an implant driver.

Which part of the collet-style holder contacts the component?

The split insert provides the contact opening around a suitable component region. The body supports that assembly and the textured end collars retain it, so the parts have different roles even when they are assembled into one holding tool.

Do the end-collar threads identify an implant screw interface?

No. The collar threads join parts of the holder assembly, while implant hardware and prosthetic screws have separate interfaces. A threaded collar is an assembly feature, not a reference for matching an implant connection.

What dimensions matter when matching a component to a preparation holder?

Compare the diameter, shape and usable engagement of the region to be retained with the documented holding interface. That region can differ from the component's maximum outside diameter or the area being prepared, and tool length and a nominal insert opening describe different attributes from a stated holding range.

Is a split-collet preparation holder equivalent to every platform-specific holder?

No. A direct split-collet design retains a suitable component at its contact region, while other systems can use proprietary platform collets, lab screws, interchangeable well tips or an analog-gripping chuck. Identify the actual held object and interface before you compare those holder formats.
