Two saw discs, 7 mm and 10 mm in diameter, supplied with five expansion screws, a pilot drill, a long pin, and driving accessories, all held in a sterilization organizer. The driving accessories are a 10–40 Ncm torque wrench, ratchet extender, 4 mm motor-mount adapter and hand driver.

Listed pricing
Set $74.95Set $48.72Black Friday 202635% OFFYou save: Set $26.23Offer ends in12days08hrs47min17sec35% off all dental and surgical instruments, including listed and quoted product prices. No code needed. Shipping and taxes are separate.
In stock. Final price depends on the selected configuration and order requirements.
Product code
DIS-DEN-0366
Material
Stainless steel
Finish
Titanium-coated finish
Size
Saw discs 7 mm and 10 mm; expansion screws 2.6–4.3 mm
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Saw Disc Kit

The Saw Disc Kit pairs two bone-cutting saw discs, 7 mm and 10 mm in diameter, with a graduated series of five expansion screws and the tools to drive them. Everything is held in one sterilization organizer. The discs, screws, drivers and access instruments stay together for storage and reprocessing, and the two disc sizes give you a choice of diameter within the same set.

Inside the organizer

  • Saw discs: one 7 mm and one 10 mm in diameter
  • Expansion screws: 2.6, 3, 3.4, 3.8 and 4.3 mm, one of each
  • Screw drive: torque wrench marked 10–40 Ncm, ratchet extender, 4 mm motor-mount adapter and hand driver
  • Access instruments: pilot drill and long pin
  • Sterilization organizer/holder

Three figures, three different measurements

Each number in this kit describes a different component:

  • 7 mm and 10 mm are the diameters of the two saw discs.
  • 4 mm is the size of the motor-mount adapter.
  • 10–40 Ncm is the range marked on the torque wrench.

The disc diameters tell you disc size, not a cutting depth. When you compare saw disc kits, look at disc diameter, cutting geometry and mounting as separate attributes.

Two connections to match

The kit runs on two separate drive paths. On the screw side, the 4 mm motor-mount adapter, the hand driver and the torque wrench with its ratchet extender turn the expansion screws by motor or by hand. On the disc side, the discs are matched to the handpiece and mandrel you cut with. Check each path against your own equipment; a fit on one side does not settle the other.

The instruments are reusable stainless steel. Process them according to the instructions supplied for the components in your kit.

Pricing the kit against your set-up

To request a quote, give us the number of kits and details of the handpiece and mandrel you plan to use with the discs. Add any packing or document requirements, and we will price the kit against that set-up. Trephine and expansion kits without discs are listed under implant surgery instruments.

Match the Saw Disc Kit to your equipment

This kit works through two separate drive paths. The saw discs run on your handpiece and mandrel. The expansion screws are turned by motor through the 4 mm adapter, or by hand. Use the photo key, the matching table and the enquiry checklist to confirm both paths before you order.

Find each part in the kit photo

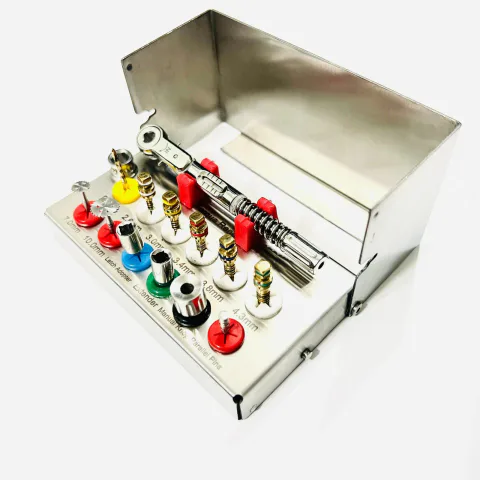

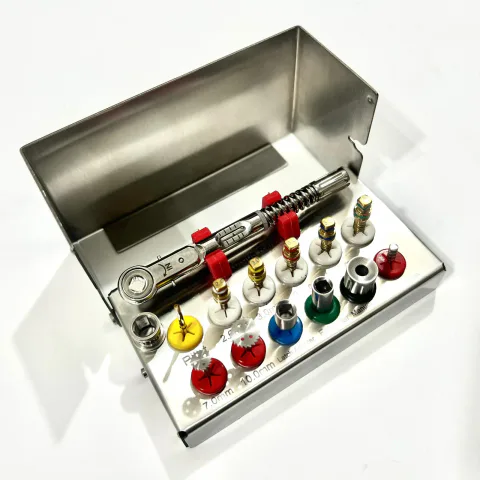

The photo below shows the open organizer with the instruments laid out in front. The disc parts and the screw parts sit in different areas of the photo, so you can see each drive path on its own.

Saw Disc Kit in its open sterilization organizer, with two saw discs on shafts at lower left, five expansion screws across the centre, smaller drive accessories in front and the torque wrench at lower right

Saw Disc Kit, open organizer view, keyed by area and drive path

  1. Organizer (top)

    The sterilization organizer that holds the full set for storage and reprocessing.

  2. Saw discs (lower left)

    Disc path. These are the two discs, 7 mm and 10 mm in diameter, shown on their shafts.

  3. Expansion screws (centre)

    Screw path. These are the five graduated screws, from 2.6 mm to 4.3 mm. The pilot drill lies diagonally beside them.

  4. Smaller pieces (front)

    Screw-side drive accessories and the long pin. Use the contents list to identify the hand driver, ratchet extender and 4 mm motor-mount adapter. Similar-looking parts are hard to tell apart in the photo.

  5. Torque wrench (lower right)

    Screw path. This is the wrench marked 10–40 Ncm, used with the ratchet extender.

Match both drive paths

A match on one path does not confirm the other, so check each column separately.

Disc path and screw path: kit parts and the equipment details to send
CompareDisc pathScrew path
Kit partsTwo saw discs, 7 mm and 10 mm diameterFive expansion screws, one each of 2.6, 3, 3.4, 3.8 and 4.3 mm
How it is drivenThe disc mounting fits your mandrel, and the mandrel fits your handpieceBy motor through the 4 mm motor-mount adapter, or by hand with the hand driver or the torque wrench and ratchet extender
Equipment to nameHandpiece make and model, and the mandrel you plan to useThe motor or handpiece that will take the 4 mm adapter, and whether you will also drive by hand
Send with itConnection details and a photo of the mandrelConnection details and a photo of the drive end

Send one enquiry for both paths

Example enquiry: 3 Saw Disc Kits, DIS-DEN-0366. Disc path: handpiece model, mandrel type, photo attached. Screw path: motor model for the 4 mm adapter, hand drive also used, photo attached. Documents: packing list. The quantity here is only an example. Each kit contains the contents listed above.

If you need the expansion side only, the Bone Expander and Sinus Kit is a separate twelve-piece set. It has no saw discs listed, and its listed contents differ from this kit: it lists a 1.8 mm drill, two pins and a 4 mm square ratchet, while this kit lists a pilot drill, one long pin, a torque wrench, a ratchet extender and a 4 mm motor-mount adapter. Check its own contents list.

  1. Disc path

    Give the handpiece model, the mandrel and a photo of the mandrel.

  2. Screw path

    Give the motor or handpiece for the 4 mm adapter, say whether you also drive by hand, and attach a photo.

  3. Quantity and requirements

    Add the number of kits and any packing or document needs.

Have experience with Saw Disc Kit?Share verified buyer or evaluator feedback. It takes about a minute.

Saw Disc Kit Questions

Is this a rotary bone-disc kit or a dental contact-saw strip?

It is a rotary kit. The 7 mm and 10 mm saw discs are bone-cutting discs run on a handpiece and mandrel. They are supplied with expansion screws and drive accessories for implant work. The kit does not contain the thin strips used on interproximal contacts in restorative dentistry.

Which disc diameters are included, and do they set the cutting depth?

There are two discs, one 7 mm and one 10 mm in diameter. Those figures give the size of each disc. They do not specify a cutting depth or a blade thickness.

What else is included besides the two discs?

The kit also contains five expansion screws (2.6, 3, 3.4, 3.8 and 4.3 mm, one of each), a pilot drill, a long pin, a torque wrench marked 10–40 Ncm, a ratchet extender, a 4 mm motor-mount adapter and a hand driver. Everything is held in a sterilization organizer.

Will the discs fit my handpiece and mandrel?

Fit depends on the disc mounting matching your mandrel and handpiece connection. Send the handpiece and mandrel you intend to use, and the drive you use for the expansion screws. We will compare them with the kit before quoting. Add your kit quantity and any packing or document needs.

Are the disc diameter, adapter size and wrench range interchangeable measurements?

No. 7 mm and 10 mm are disc diameters, 4 mm is the size of the motor-mount adapter that drives the expansion screws, and 10–40 Ncm is the range marked on the torque wrench. Each figure belongs to a different component, so check each one against your own equipment separately.

Are the instruments reusable?

Yes. The instruments are reusable stainless steel and the kit is listed as autoclavable. Process each component according to the instructions supplied with your kit, and keep the set together in its sterilization organizer.
