Dental Implant Instruments

Twist Implant Drill Kit

Five external-irrigation twist drills (2.8, 3.2, 3.65, 4.2 and 5.2 mm) supplied with a marking drill, a pilot drill, parallel pins, a drill extender, latch and ratchet-key drivers, a 6.35 mm hex ratchet wrench and a hand-wrench adapter.

Listed pricing
Set $128.95Set $83.82Black Friday 202635% OFFYou save: Set $45.13Offer ends in12days08hrs49min22sec35% off all dental and surgical instruments, including listed and quoted product prices. No code needed. Shipping and taxes are separate.
In stock. Final price depends on the selected configuration and order requirements.
Product code
DIS-DEN-0347
Material
AISI 420 stainless steel
Finish
Polished
Size
Twist drills 2.8, 3.2, 3.65, 4.2, 5.2 mm; drivers 1.25 and 2.42 mm; 6.35 mm hex wrench
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Twist Implant Drill Kit

The Twist Implant Drill Kit pairs five sized external-irrigation twist drills, at 2.8, 3.2, 3.65, 4.2 and 5.2 mm, with the marking, pilot, alignment and driving instruments that work alongside them. One of each instrument is supplied in polished AISI 420 stainless steel that is reusable and autoclavable, so the drilling, alignment and driving tools arrive together in one order.

Kit contents by task

Drilling:

  • Marking drill
  • Pilot drill, external irrigation
  • Twist drills, external irrigation: 2.8, 3.2, 3.65, 4.2 and 5.2 mm

Alignment and reach:

  • Parallel pins, one long and one short
  • Drill extender

Driving:

  • Ratchet wrench, 6.35 mm hex
  • Short latch screw driver, 1.25 mm
  • Short latch implant driver, 2.42 mm
  • Short ratchet-key screw driver, 1.25 mm
  • Short ratchet-key implant driver, 2.42 mm
  • Hand-wrench adapter

Marking, pilot and sized drills

The marking drill and the pilot drill are listed separately from the five sized twist drills. Each has its own role within the drilling group; your implant system's protocol determines the sequence. The five twist drills are the sized tools, and each is identified by its cutting diameter, which gives you five diameters from 2.8 to 5.2 mm in one kit. The parallel pins are alignment checks, not additional cutting drills. The extender gives a drill extra reach where access calls for it.

External irrigation and your setup

The pilot drill and all five twist drills are external-irrigation designs. Coolant reaches the site from outside the drill, typically from the handpiece or a separate irrigation line, rather than through a channel running inside the drill. Choose this kit when your surgical motor and handpiece deliver coolant that way. A protocol built around internally irrigated drills calls for a different drill type.

Reading the size labels

Several millimetre figures appear in the kit, and each refers to something different:

  • 2.8 to 5.2 mm is the cutting diameter of each twist drill.
  • 1.25 mm is the size label of the two screw drivers, one latch and one ratchet-key.
  • 2.42 mm is the size label of the two implant drivers, one latch and one ratchet-key. It is a driver size, not a drill or implant-body diameter.
  • 6.35 mm is the hex drive of the ratchet wrench.

Two driver styles at each size

Each driver size comes in a latch version and a ratchet-key version. The ratchet wrench and a hand-wrench adapter are supplied alongside them. This gives you two connection styles at both the 1.25 mm and the 2.42 mm size. Fit to your components depends on the driver tip, how it engages, and the drive interface, so match these to the implant system and handpiece you use.

When you request pricing, tell us how many kits you need, the drill length and shank your implant system requires, the handpiece connection you use, and any packing or documentation you need with the shipment. See the wider dental implant instruments range, or request a quote for this kit.

Telling cutting tools from alignment, reach and drive parts

The instruments in this kit fall into four roles. Sorting a part by role tells you which dimension identifies it and what to match against your own system.

Four roles in one tray

Each driver has two ends to compare. The working tip, labelled 1.25 mm on the screw drivers and 2.42 mm on the implant drivers, engages your screw or implant. The drive end is a latch connection for a handpiece or a ratchet-key connection for the wrench. A driver suits your setup when both ends match, which is why each size comes in both styles.

Listed instruments by role
RoleListed instrumentsIdentify or match by
CuttingMarking drill; pilot drill; twist drills 2.8, 3.2, 3.65, 4.2 and 5.2 mmCutting diameter for the twist drills, plus drill length and shank. Pilot and twist drills are external irrigation, fed by coolant from the handpiece or a separate line.
AlignmentLong and short parallel pinsLong or short; they check alignment and do not cut
ReachDrill extenderYour drill shank and handpiece connection
Driving6.35 mm hex ratchet wrench; latch and ratchet-key screw drivers, 1.25 mm; latch and ratchet-key implant drivers, 2.42 mm; hand-wrench adapterWorking tip size and drive connection

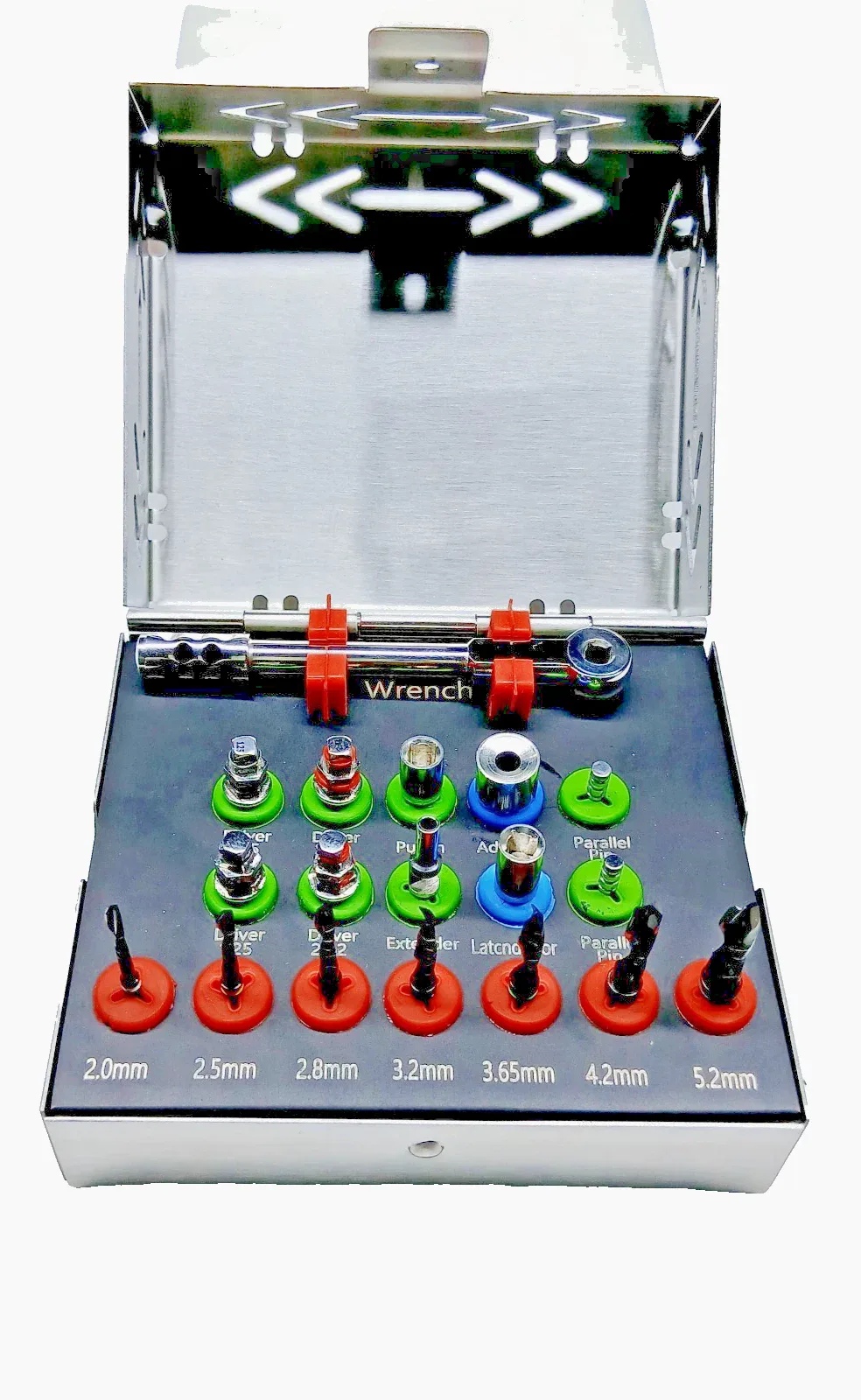

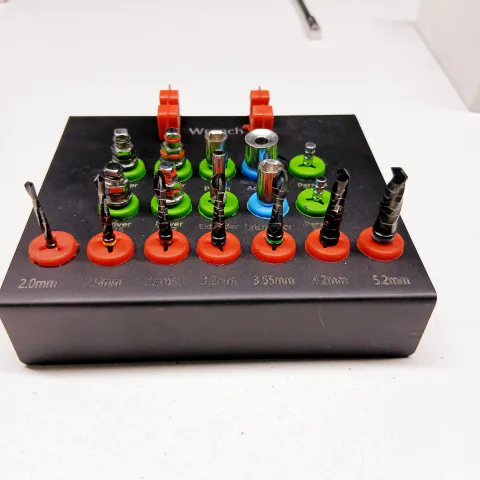

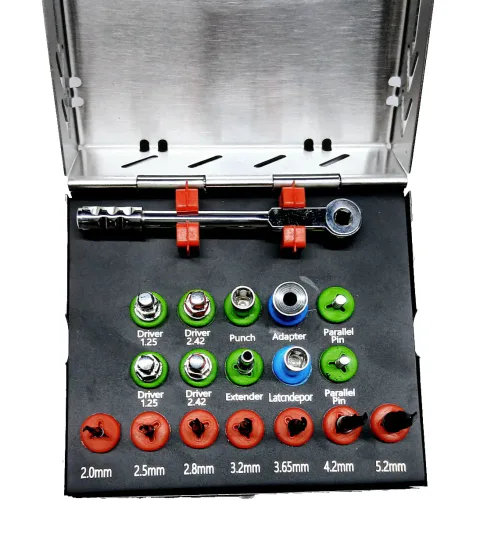

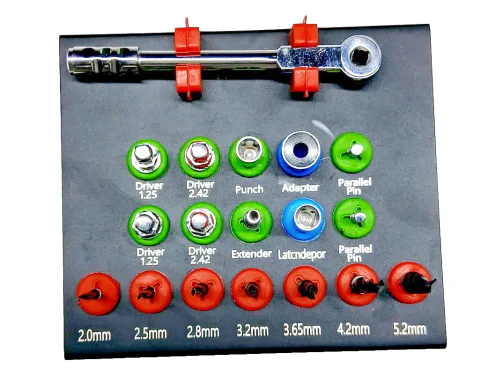

Twist implant drill kit tray from the front with a ratchet wrench at the back, a row of red-holder drills and green driver positions

Kit tray from the front, arranged by tool role.

  1. Wrench

    Ratchet wrench lying across the back of the tray.

  2. Front row

    Red-holder cutting positions, including the five sized twist drills printed 2.8, 3.2, 3.65, 4.2 and 5.2.

  3. Driver positions

    Green positions printed 1.25 and 2.42, each label appearing twice, in line with the two driver styles listed at each size.

  4. Pins and accessories

    Parallel-pin positions at the right; extender and adapter positions in the middle rows.

  5. Contents

    Read the tray by role; the specification list describes the supplied instruments.

What to include in a replacement or system-matching request

Example: kit DIS-DEN-0347; one twist drill, 3.65 mm, external irrigation; one short ratchet-key implant driver, 2.42 mm; implant system and handpiece named. If you are reconciling an existing tray, ask for the packing list with the quotation.

  • Kit SKU DIS-DEN-0347 and the number of kits or single parts
  • For a cutting tool: its role and, for a twist drill, the printed diameter, plus the drill length and shank your system needs
  • For a driver: 1.25 mm screw driver or 2.42 mm implant driver, and latch or ratchet-key
  • Your implant system and handpiece connection
Have experience with Twist Implant Drill Kit?Share verified buyer or evaluator feedback. It takes about a minute.

Twist Implant Drill Kit Questions

Which drill sizes come in the Twist Implant Drill Kit?

The kit has five sized external-irrigation twist drills at 2.8, 3.2, 3.65, 4.2 and 5.2 mm, one of each. A marking drill and an external-irrigation pilot drill are supplied in addition to these five. The five sizes therefore describe the twist drills, not the full drilling inventory.

What is the difference between the marking, pilot and twist drills?

The marking drill and the pilot drill are distinct instruments, supplied in addition to the five sized twist drills. Each twist drill is identified by its cutting diameter, from 2.8 to 5.2 mm. Your implant system's protocol determines the drilling sequence and how each instrument is used.

Are these drills internally irrigated?

No. The pilot drill and the five twist drills are designed for external irrigation. Coolant is delivered from outside the drill, typically from the handpiece or a separate irrigation line, rather than through an internal channel. They suit a setup that supplies coolant this way.

Are 1.25 mm and 2.42 mm drill diameters?

No. Both are driver sizes. 1.25 mm identifies the two screw drivers and 2.42 mm identifies the two implant drivers, and each size comes in one latch and one ratchet-key version. The drill diameters are 2.8, 3.2, 3.65, 4.2 and 5.2 mm, and 6.35 mm is the hex drive of the ratchet wrench.

Do the latch and ratchet-key drivers make the kit fit every implant system?

No. Having two driver styles gives you more connection options, but it does not make the kit fit every system. Fit depends on the driver tip, its engagement and the drive interface matching your components, and on your handpiece connection. When you request a quote, include your implant system, handpiece connection, and the drill length and shank you need.

Can the instruments be autoclaved?

Yes. The instruments are made of reusable, autoclavable AISI 420 stainless steel. Clean and reprocess them according to the validated instructions supplied with the kit.
