About Four-Drill Bone Collector Set with Metal Holder

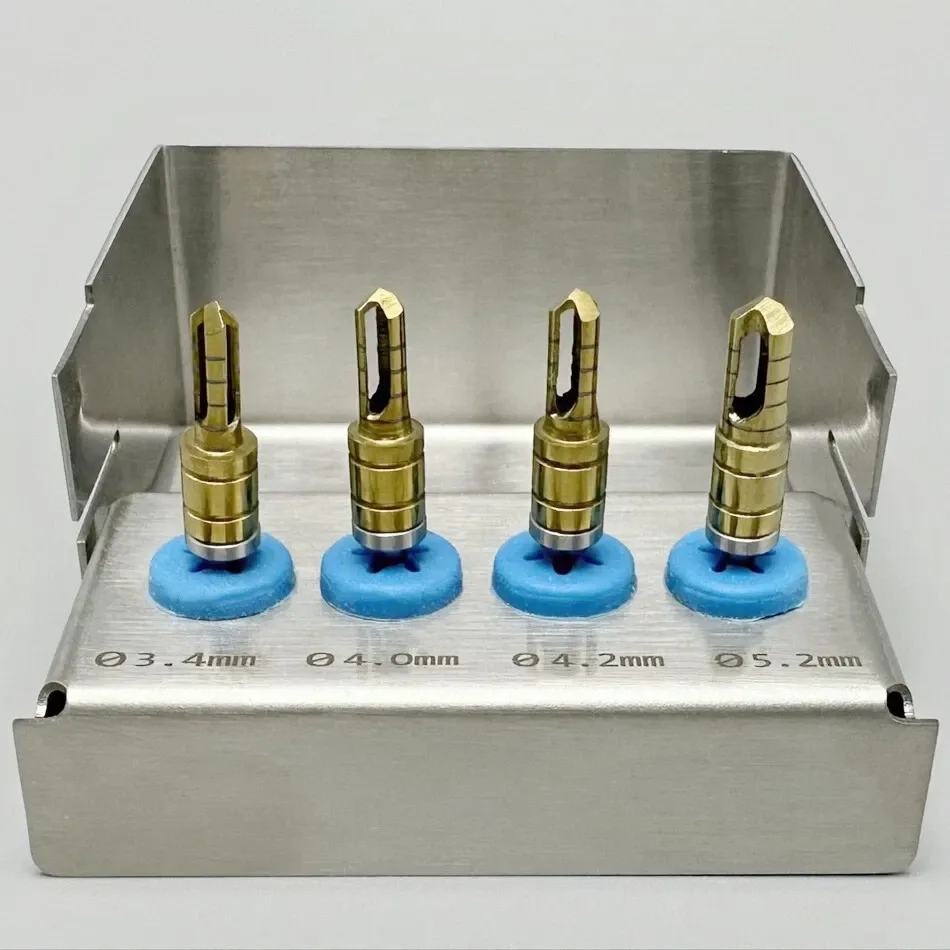

This four-drill bone collector set contains instruments marked 3.4, 4.0, 4.2 and 5.2 mm, together with a metal storage holder. Use reference DIS-IMP-BCOL-PHOTO4 to request this exact configuration. It is not the different four-drill, stopper or trephine assortment listed on our broader collector-kit page.
Identify the four-drill assortment

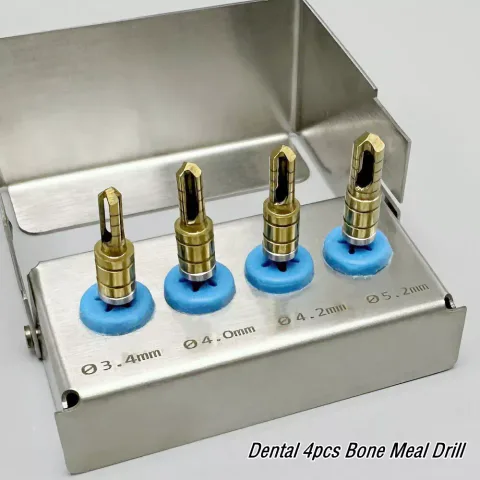

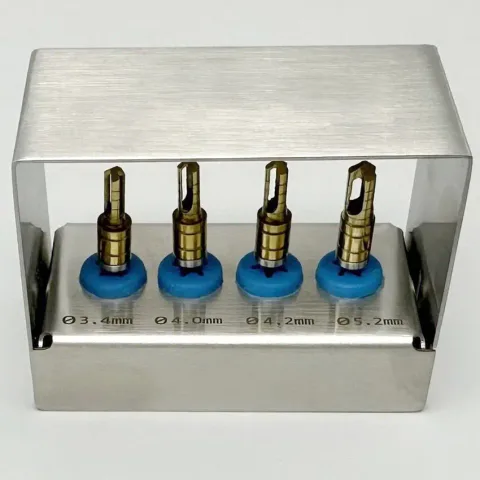

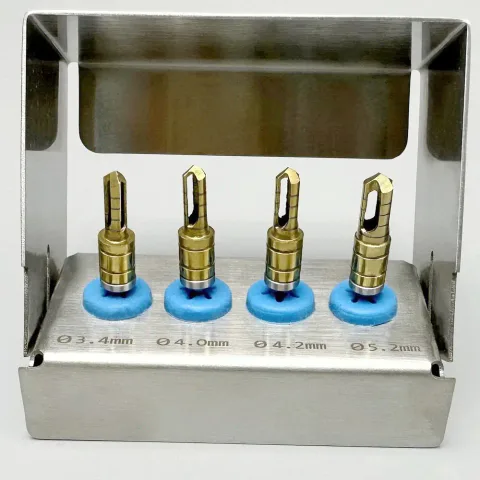

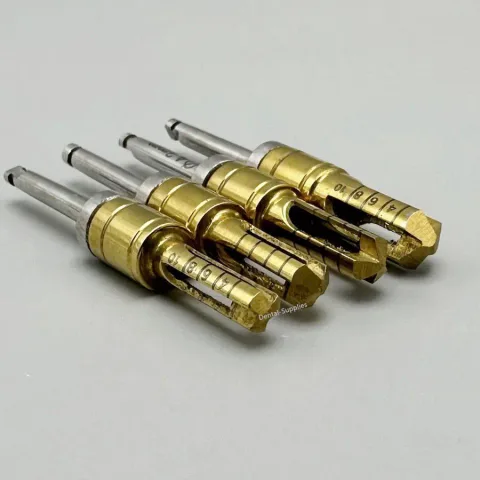

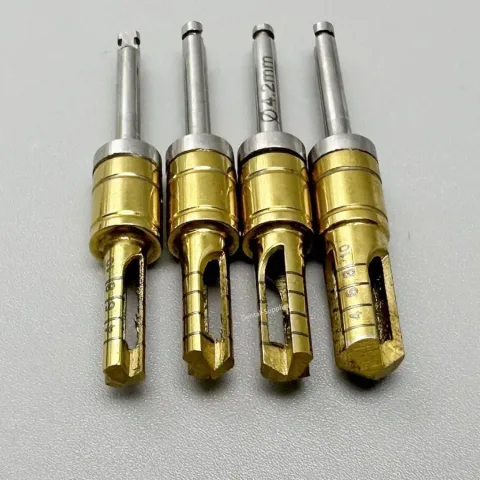

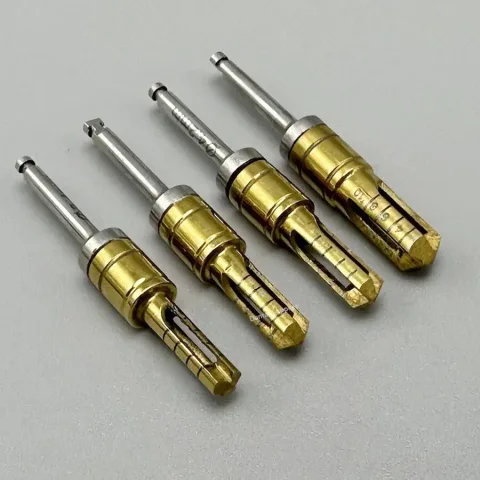

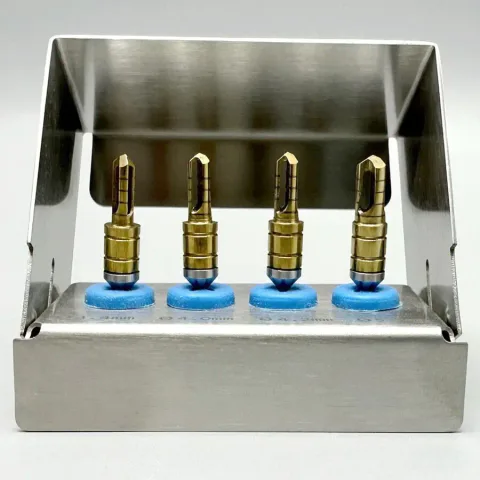

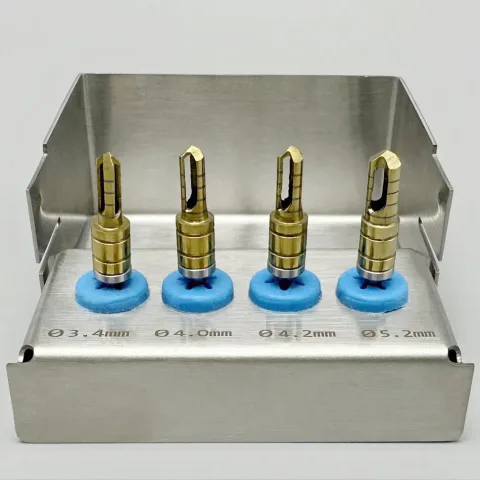

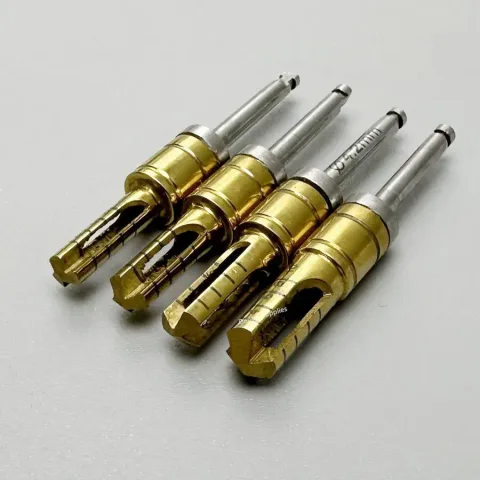

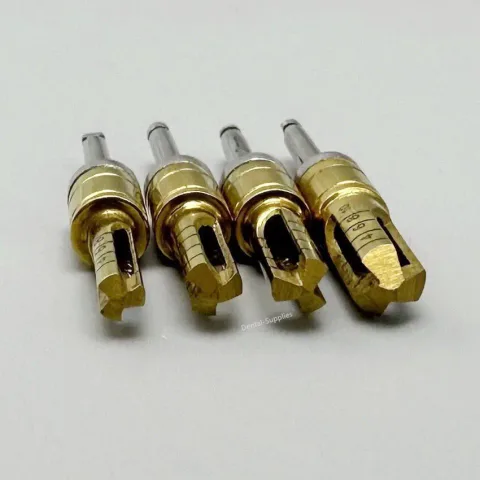

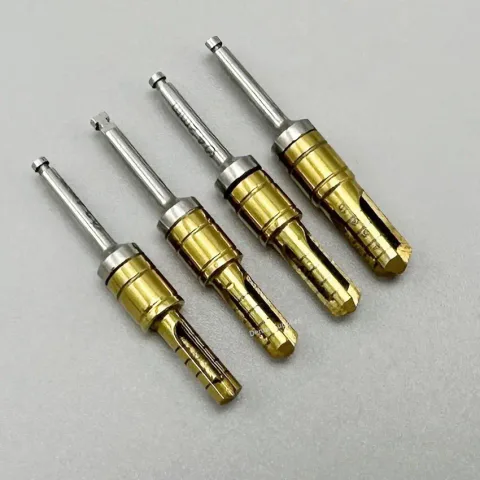

The four instruments have slotted collecting heads, shoulders and attachment shanks. The holder has four individually labelled positions. Alternate views show the same instruments inside the holder and laid out separately; they do not increase the supplied instrument count.
The 3.4, 4.0, 4.2 and 5.2 mm values are the nominal diameter markings visible in the supplied photographs. Before ordering to a dimensional specification, confirm the drawing and measurement basis. Do not treat a holder engraving as a dimensional inspection certificate or assume that it defines every cutting and internal diameter.
What the configuration includes
The component schedule lists one drill at each marked size and one metal storage holder: four instruments plus a holder. Separate depth stoppers, a trephine and a bone-remover accessory are not shown as included items for this configuration. If you need those components, compare a documented stopper-and-trephine kit or specify them separately in your quotation.
The heads have a gold-coloured finish; confirm its material and coating specification for the supplied model. It does not, by itself, establish a titanium coating, coating thickness, steel grade or permitted number of reuse cycles. These requirements belong in the supplied-model specification.
Check the interface before purchasing
Provide the required handpiece interface and the relevant model documentation. Confirm shank geometry, overall and working lengths, head diameter definitions and any depth-control requirements. A similar collector head or the same nominal diameter does not establish interchangeable fit. We confirm compatibility against your specified implant system before quoting.
Instructions and reprocessing
For professional dental use with the supplied-device instructions. Do not derive a drilling speed, torque, clinical sequence, disassembly method or sterilization cycle from the photographs. Reference manufacturers publish different operating requirements for their own collector systems. The IFU and approved protocol must identify the actual delivered model before it is used or reprocessed.
Request This Four-Drill Set
Include DIS-IMP-BCOL-PHOTO4, quantity, destination, interface requirements and any drawing or inspection requirements. List additional accessories individually. Your quotation should identify the four-drill assortment, storage holder, packaging and available model documentation so that procurement can compare like-for-like configurations.
Measurement research and instruction references
These sources describe other manufacturers’ reference models. They do not establish the manufacturer, exact dimensions, compatibility or validated instructions for the instrument we supply. Use the supplied model’s drawing and IFU for those details.
- www.ddsgadget.com: product reference — Different MCT Bio kit with 3.9 mm drill and additional components; reference contrast only, not an IFU for this set. Reviewed 2026-09-12.
- www.dentmark.com: product reference — Manufacturer reference for a different collector assortment; no dimensions or instructions transferred. Reviewed 2026-09-12.
