Frazier Suction Tubes — Manual Aspirator Pattern

Angled Frazier suction tubes in 2, 3, 4 and 5 mm sizes for clearing blood and fluid from a small surgical site. They connect to your existing suction line; no pump or electrosurgical function is included.

Product code
DIS-SUR-SUCT-FRAZ
Size
2, 3, 4 and 5 mm size labels
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Frazier Suction Tubes — Manual Aspirator Pattern

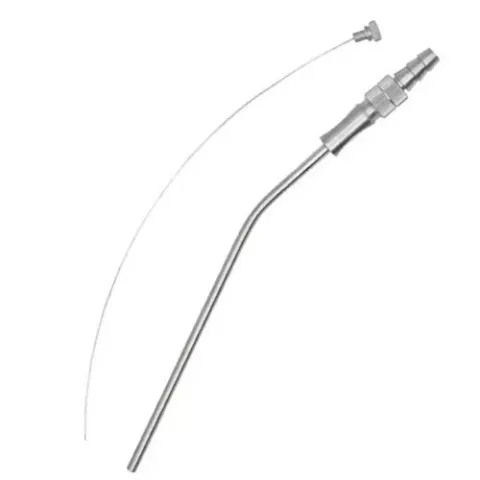

A Frazier suction tube is a slim, angled metal tube that connects to a suction line and clears blood, saliva and irrigation fluid from the surgical field. The angle keeps your hand out of the line of sight while the tip reaches into the site. We supply the tubes in 2, 3, 4 and 5 mm sizes.

Choosing a size

Smaller sizes reach into narrow spaces such as an extraction socket or a small flap and clear fluid gently. Larger sizes move more fluid when the field is busier. Many surgical trays keep more than one size. We confirm in your quotation whether each size refers to the inside or the outside diameter of the tube.

What you need to use them

The tubes are passive: they need a separate suction source and tubing. Check the connector end against your suction tubing before ordering in quantity. They are not electrosurgical suction electrodes and have no cable or powered function.

Ordering

  • Tell us the sizes and quantity of each you need.
  • Evaluation samples of 1–3 pieces per pattern are available.

Cleaning and sterilization

Clean the inside of the tube promptly after use so debris does not dry in the lumen; a cleaning wire or brush sized to the bore helps. Follow the supplied processing instructions and your facility's validated protocol.

Other instruments for the same surgical tray include our surgical retractors and root elevators.

Plan a mixed-size Frazier tube order and check the connection

Order by the number of complete tubes in each size, and check the rear connection against your own suction hose before you order in quantity. The four tubes in the photo show the size options; they are not a fixed four-pack.

Size, marking and connection record

The angled tube keeps your hand out of your line of sight while the tip clears blood, saliva and irrigation fluid. Write one line per size, with the number of complete tubes you need, then add the details of the connection on your suction line. Illustrative planning only: 2 × 3 mm plus 2 × 4 mm is 4 tubes.

Copy the size marking on your current tubes exactly as it appears, including the unit: French (FR) or millimetres (mm). The same number does not describe the same size in FR and mm, so a matching numeral alone does not mean a match. If you know whether the size refers to the inner diameter (ID) or outer diameter (OD), note that as well. We confirm the required reference and the ID/OD basis in your quotation.

DIS-SUR-SUCT-FRAZ: listed sizes and checks before ordering
CheckThis product or fieldWhat to record
Size options2, 3, 4 and 5 mm size labelsNumber of complete tubes for each size
Inside or outside diameterConfirmed in your quotationWhich diameter your current tube or procedure relies on
Existing tube markingYour fieldThe exact marking on the tube you are replacing, mm or FR
Rear connectionSeparate from tube size; check before quantity ordersSuction equipment or hose make and reference, and your measured connection
Working lengthNot listedRequired length, if your procedure needs one
PatternAngled Frazier suction tubeAny angle you need to match on an existing tube
TypePassive tube; no pump, tubing or electrosurgical cableYour separate suction source and tubing
Clearing styletNot listedAsk whether one is supplied; do not assume it is
Samples1–3 pieces per patternSizes and quantity to evaluate

Read the product photograph

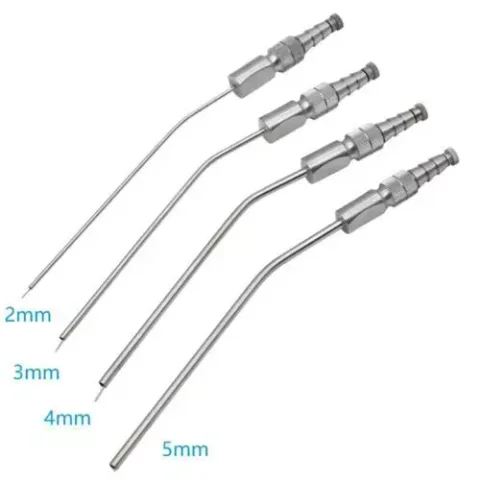

Four angled Frazier-pattern suction tubes with visible 2 mm, 3 mm, 4 mm and 5 mm labels, tips toward the lower left and ribbed connection ends toward the upper right

Four angled Frazier-pattern suction tubes, one in each listed size: 2, 3, 4 and 5 mm

  1. Size labels

    Each tube carries a visible label: 2 mm, 3 mm, 4 mm or 5 mm. Use these labels for your quantity lines.

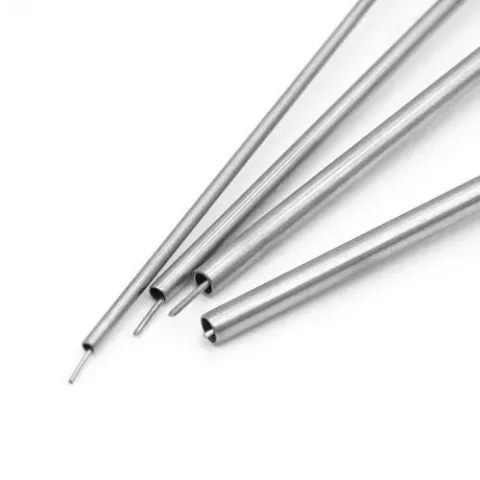

  2. Tips

    Toward the lower left. This narrow end reaches the site and draws fluid into the tube.

  3. Angled shaft

    The bend between tip and handle that keeps your hand clear of your line of sight.

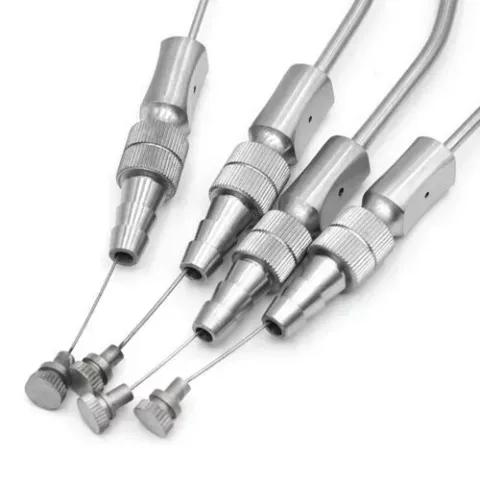

  4. Ribbed connection end

    Toward the upper right. This is where your suction tubing attaches, so compare it with your hose.

  5. Four tubes shown

    One tube for each size option. The photo does not set the pack quantity.

Prepare your request

Edit the record in this box. Copy it before you leave the page, then paste it into the quotation form.

Have experience with Frazier Suction Tubes — Manual Aspirator Pattern?Share verified buyer or evaluator feedback. It takes about a minute.

Frazier Suction Tubes — Manual Aspirator Pattern Questions

What is Frazier suction used for?

A Frazier tube is a hand-held aspirating instrument that conveys fluid from the working field through its hollow tube to a connected suction line. The external system supplies the vacuum, and the tube provides the pathway; its narrow angled construction is an instrument attribute, separate from the suction source.

What is the relief hole on a Frazier suction tube for?

The relief vent is associated with modulation of suction at the tip. It has a different role from the hollow fluid pathway and the rear hose connector: the three features handle suction modulation, fluid conveyance and attachment respectively.

How do bore, outside diameter and working length differ?

Bore describes the internal fluid pathway, and outside diameter describes the tube's external profile. Working length describes the relevant shaft reach and differs from overall instrument length, so keep each measurement label with its model reference when you compare tubes.

Does tube diameter determine which suction hose fits?

No. The rear connection has its own interface specification: a cannula diameter describes the tube, while hose fit concerns the connector and tubing interface. Compare the connection details separately from the working-end size.

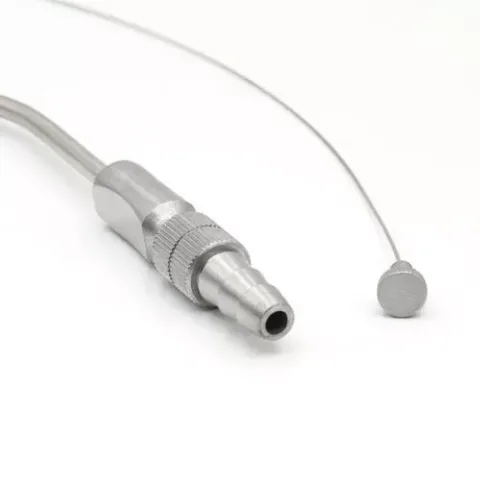

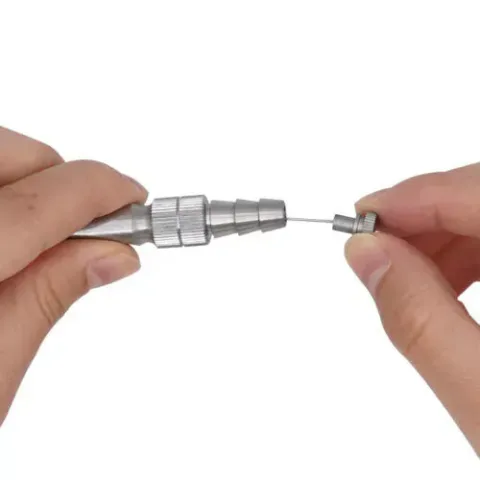

What does a Frazier clearing stylet do?

A clearing stylet is a slender element used along the lumen to dislodge debris. It has a different function from the tube that conveys fluid and from the connector that attaches to the suction line, and clearing the lumen is one component task, not a complete reprocessing method.
