Dental Implant Instruments

Lateral Sinus Drill Kit

Lateral and crestal sinus-access instruments in one stainless-steel box. The tray shows four hand instruments, four marked stops, two mushroom burs, a separate toothed bur and three crestal drill positions.

Listed pricing
Set $133.95Set $87.07Black Friday 202635% OFFYou save: Set $46.88Offer ends in12days08hrs47min13sec35% off all dental and surgical instruments, including listed and quoted product prices. No code needed. Shipping and taxes are separate.
In stock. Final price depends on the selected configuration and order requirements.
Product code
DIS-DEN-0362
Material
AISI 420 stainless steel
Finish
Passivated; golden titanium-coated tips on the four hand instruments
Size
Crestal drills labelled 3.3, 3.7 and 3.3 mm; stops marked 08, 06, 04, 02
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Lateral Sinus Drill Kit

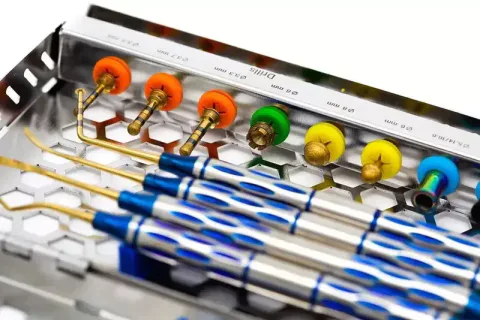

The stainless-steel case groups the four hand instruments, four stops and the photographed rotary positions by type. Use the labels and seat colors below to identify a part for your quotation.

Contents by access route

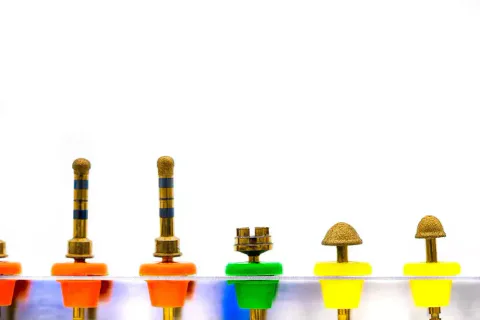

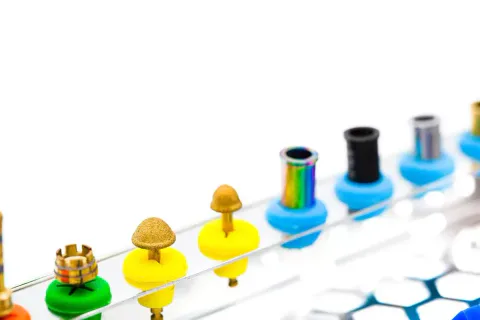

  • Yellow seats show mushroom-shaped diamond burs labeled Ø6 mm and Ø8 mm. The green seat shows a separate toothed bur labeled Ø8 mm.

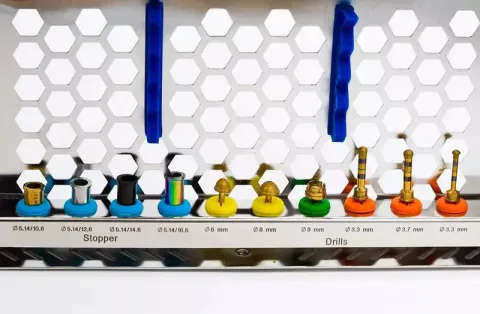

  • The three orange crestal positions read 3.3, 3.7 and 3.3 mm from left to right when facing the open case. Include the seat position when asking about either 3.3 mm drill.
  • Hand instruments: 4 sinus-lift instruments with golden titanium-coated tips
  • Stops: 4, marked 08, 06, 04 and 02
  • Storage: 1 stainless-steel box

Sorting the kit by route makes it straightforward to compare with a single-approach kit. The lateral burs and the crestal drills are separate rotary groups, each with its own dimensions. The golden tips set the four hand instruments apart from the rotary tools as soon as you open the box.

For a lateral-only drill assortment, compare the LAT8 sinus lift kit option. It lists eight diamond-coated drills and a storage box under SKU DIS-IMP-SIN-GRP-LAT8.

Reading the stop markings

The four stops are marked 08, 06, 04 and 02. Treat these markings as stop identifiers rather than a working-depth chart. Take any drill-to-stop and depth relationship from the documentation supplied with the kit.

Material and care

The instruments are AISI 420 stainless steel, passivated and reusable. The titanium coating is applied to the tips of the four hand instruments. Reprocess the kit according to the sterilization instructions supplied with it.

Quotation

For a quotation, request a quote and include:

  • How many kits you need
  • The handpiece and implant system the drills and burs will run in
  • Your packing and document requirements

Expansion, trephine and disc kits are grouped under dental implant surgical instruments.

Choosing this mixed sinus kit or a single-route set

This kit keeps rotary tools for both access routes, hand instruments and stops in one box. Use the comparison below to check whether the full assortment fits your requirement, and to describe a single component when you need a replacement.

Mixed assortment, rotary-only or hand-only

A rotary-only lateral set gives you burs for the window alone. A hand-only set gives you sinus-lift instruments alone. This kit holds four instrument groups together, so it suits a practice that works both lateral and crestal routes and wants every group checked and reprocessed as one unit. If you need only one group, the table shows which part of the kit covers it.

Groups in kit DIS-DEN-0362
GroupListed contentsRole in the kit
Lateral rotary2 diamond lateral burs, mushroom-shaped headsLateral window
Crestal rotary3 crestal drills, listed as 3.3, 3.7 and 3.3 mmCrestal access
Hand instruments4 sinus-lift instruments, golden titanium-coated tipsHand work; the coated tips set them apart from the rotary tools
Stops4, marked 08, 06, 04 and 02Stop identifiers, used as set out in the kit documentation
Storage1 stainless-steel boxHolds every group together

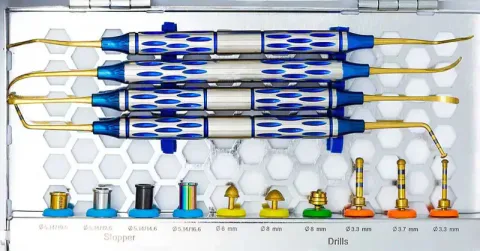

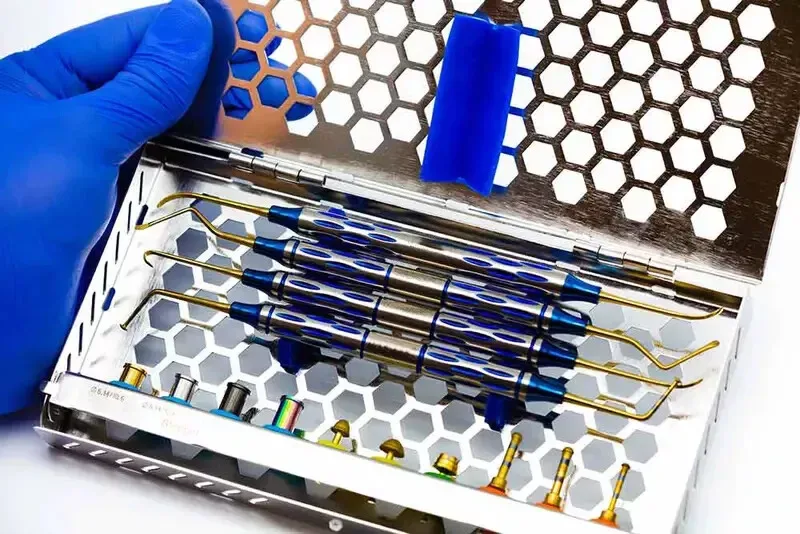

Open lateral sinus kit with four blue-grip double-ended hand instruments above a row of stops and rotary tools

Kit photograph showing hand instruments, stops and rotary tools held as separate groups.

  1. Hand instruments

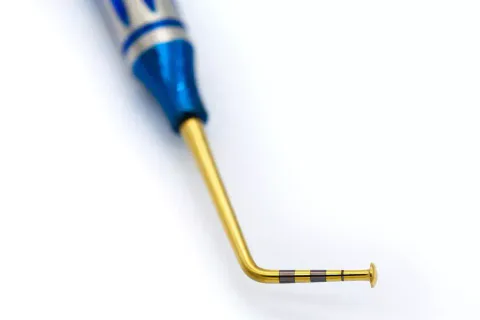

    Four blue-grip instruments across the top, each with a working end at both ends. These are the four instruments with golden titanium-coated tips.

  2. Stops

    Four separate hollow stops. Order stops by the listed markings 08, 06, 04 and 02; the printing in this photograph is different.

  3. Rotary tools

    Mushroom-headed burs and slender drill forms in the lower row. The rotary layout photographed differs from the listed schedule, so the contents table is the supplied description.

  4. Case

    Perforated case with a fixed position for each group, which makes a missing item easy to spot.

Requesting one replacement component

A complete request reads: kit DIS-DEN-0362; one crestal drill, third listed entry 3.3 mm, tip photograph attached; one stop marked 04; handpiece and implant system named; one of each.

  1. Name the kit and group

    Start with SKU DIS-DEN-0362 and the group: lateral bur, crestal drill, hand instrument or stop.

  2. Give the listed position

    The crestal drills are listed in order as 3.3, 3.7 and 3.3 mm. For a 3.3 mm drill, say first or third entry and attach a photograph of its tip and profile so the two same-labelled entries stay distinct.

  3. Quote the marking or send a photo

    For a stop, give its marking. For a hand instrument or lateral bur, send a photograph of the working end.

  4. Add your setup and quantity

    Name the handpiece and implant system the rotary tool runs in, and how many pieces you need.

Have experience with Lateral Sinus Drill Kit?Share verified buyer or evaluator feedback. It takes about a minute.

Lateral Sinus Drill Kit Questions

How do lateral and crestal sinus-access instruments differ, and which does this kit cover?

The lateral approach reaches the sinus floor through a window prepared in the lateral wall of the maxilla. The crestal approach works upward from the alveolar crest. This kit carries separate tools for each route: two diamond lateral burs with mushroom-shaped heads for the lateral side and three crestal drills for the crestal side. Four sinus-lift hand instruments and four stops complete the set.

Which instruments and drill groups are supplied?

The stainless-steel box holds four sinus-lift hand instruments and four marked stops. The tray photos show two mushroom-shaped burs, a toothed bur in its own green seat and three orange crestal positions. Quote the tray position when you need one specific part.

Do the stop markings 08, 06, 04 and 02 equal drilling depth?

Read them as stop identifiers, not depths. A stop marking, the overall instrument length and the effective working depth are separate measurements, so a marking such as 08 should not be taken as a guaranteed 8 mm depth. Take the drill-to-stop and depth relationship from the documentation supplied with the kit and from the protocol you follow.

Which parts are titanium-coated?

The tips of the four sinus-lift hand instruments carry a golden titanium coating. The instruments themselves are AISI 420 stainless steel. The specified coating applies to those four hand-instrument tips; it is not a kit-wide coating specification.

What should I check against my handpiece before ordering?

The crestal drills and lateral burs need to suit the handpiece and implant system you will run them in. Send those details with your kit quantity and your packing and document requirements. Ask for the instructions for each component with your quotation.

How is the kit reprocessed?

The instruments are passivated AISI 420 stainless steel and are reusable. Clean and sterilize them according to the sterilization instructions supplied with the kit.
