Dental Implant Instruments

Universal Bur and Trephine Kit

A 25-instrument set with eight titanium-coated trephines from 3 to 10 mm and eight titanium-coated drills from 2 to 5.2 mm. It also includes a 10–40 Ncm torque wrench, hex and handpiece drivers, a ratchet extender, an extender and compression screws, all in a storage box.

Listed pricing
Set $163.95Set $106.57Black Friday 202635% OFFYou save: Set $57.38Offer ends in12days08hrs46min58sec35% off all dental and surgical instruments, including listed and quoted product prices. No code needed. Shipping and taxes are separate.
In stock. Final price depends on the selected configuration and order requirements.
Product code
DIS-DEN-0357
Material
AISI 420 stainless steel
Finish
Titanium coating on the trephines and drills
Size
Trephines 3–10 mm; drills 2–5.2 mm
MOQ
confirmed with your quote

Courier delivery. We ship through DHL, FedEx or another available courier, depending on your destination. We confirm the courier, shipping cost and estimated delivery time with your order. Shipping details

About Universal Bur and Trephine Kit

Our Universal Bur and Trephine Kit puts two titanium-coated cutting series, eight trephines and eight drills, in one box with the torque wrench, drivers, extenders and compression screws that complete the set: 25 instruments in all. Because both size series come in a single set, you can review a trephine-and-drill assortment without combining separate sets.

What the 25 instruments are

  • 8 titanium-coated trephines: 3, 4, 5, 6, 7, 8, 9 and 10 mm
  • 8 titanium-coated drills: 2, 2.8, 3.2, 3.65, 4.2, 4.5, 4.8 and 5.2 mm
  • 1 torque wrench, 10–40 Ncm, with 4.0 mm and 6.35 mm interfaces
  • 2 hex drivers, both with a 1.25 mm hex, long configuration
  • 2 handpiece drivers: 1.25 mm and 2.42 mm
  • 1 ratchet extender, 4 mm square
  • 2 compression screws, labelled 2.8/4.2 mm and 4 mm
  • 1 extender, labelled 2.33 mm

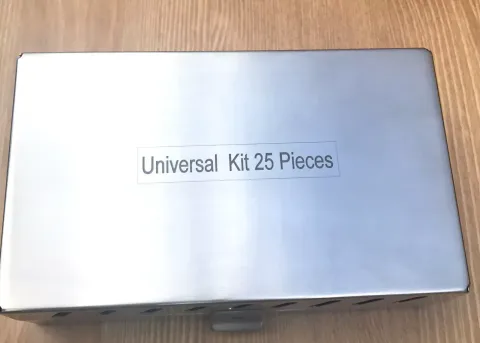

The storage box comes in addition to the 25 instruments. Its colour may differ from the one in the photographs.

Hollow trephines, solid drills

The trephines are hollow. Each one cuts a circular channel and leaves a cylindrical core inside the tube. The drills are solid and cut a full-width bore. A trephine number therefore describes a tube rather than a hole, so a trephine and a drill with similar numbers do not remove the same material.

The trephine series rises in even 1 mm steps from 3 to 10 mm. The drill series is more closely spaced, with intermediate sizes such as 3.65 and 4.5 mm between 2.8 and 5.2 mm. Both series are AISI 420 stainless steel with a titanium coating applied over the steel. The trephine labels are single figures. If you are matching them to trephines you already stock, tell us whether your current sizes are stated as inner or outer diameter.

Interfaces to check against your system

In this kit, “Universal” describes the breadth of the assortment rather than a fit for every implant brand. Compare it with your system one interface at a time:

  • Wrench and ratchet: the 10–40 Ncm wrench lists 4.0 mm and 6.35 mm interfaces, and the ratchet extender has a 4 mm square
  • Handpiece-driven tools: two handpiece drivers, labelled 1.25 mm and 2.42 mm. Match the actual connection and working tips to your equipment.
  • Hand driving: two long hex drivers, each with a 1.25 mm hex tip

Quoting and reprocessing

All instruments are reusable and autoclavable. Reprocess the set according to the instructions supplied with it. To request a quote, send us three things: the number of sets you need, the implant system and handpiece the drivers have to match, and any packaging, labelling or document requirements for your market. Expansion, sinus-access and grafting kits are listed in our dental implant instruments range.

Compare universal trephine kits

  • Universal Bur and Trephine Kit

    DIS-DEN-0357

    25 instruments

    Eight trephines with nominal 3–10 mm markings

    Eight solid drills

  • Extended Universal Trephine Kit

    DIS-DEN-0358

    Eight trephines, 2/3 to 9/10 mm inner/outer diameter

    16 conical drills with S1, S3, S5 or S7 stopper markings

Comparing the kit by cutting form and connection

The 25 instruments sort into two cutting series and two support groups. Comparing within a group, and separating working tips from drive interfaces, makes a replacement or system check straightforward.

Four groups, 25 instruments

A trephine and a drill with similar numbers do different jobs. The hollow trephine cuts a ring and leaves a core; the solid drill removes material across its full width. Compare a replacement within its own series.

For the driving tools, keep two connections apart. The working tip engages your component: a 1.25 mm hex on both long hex drivers, and labels of 1.25 mm and 2.42 mm on the two handpiece drivers. The drive interface takes the wrench or handpiece: the 10–40 Ncm torque wrench lists 4.0 mm and 6.35 mm interfaces, and the ratchet extender has a 4 mm square.

Instrument groups in kit DIS-DEN-0357
GroupCountCompare by
Hollow cutting: titanium-coated trephines8Nominal size label, 3 to 10 mm; state whether your existing sizes are inner or outer diameter
Solid cutting: titanium-coated drills8Cutting diameter, 2 to 5.2 mm
Driving and torque: torque wrench, 2 hex drivers, 2 handpiece drivers5Working tip and drive interface
Reach and support: ratchet extender, extender, 2 compression screws4Printed label and the connection it fits
Total25Storage box supplied in addition

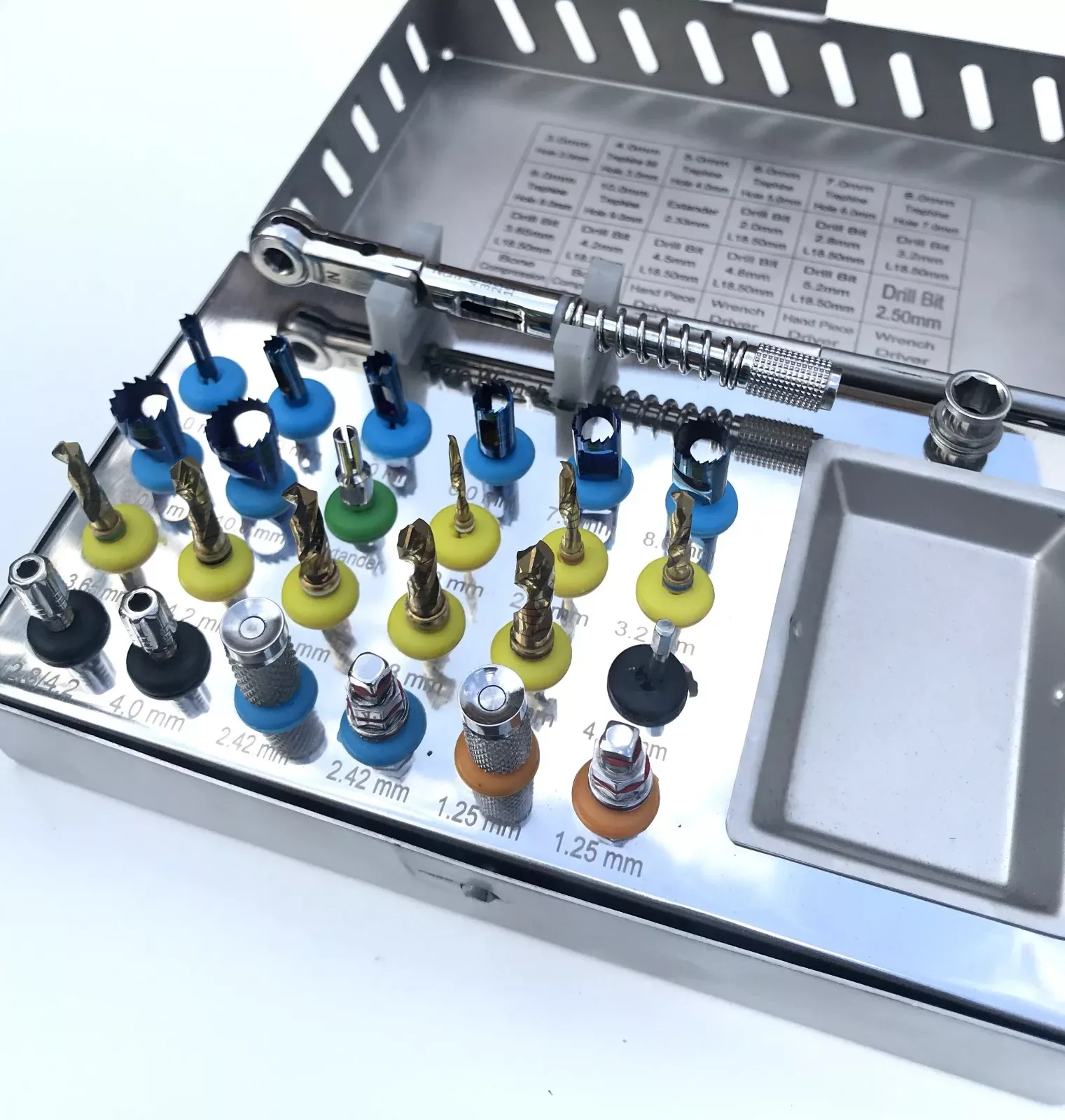

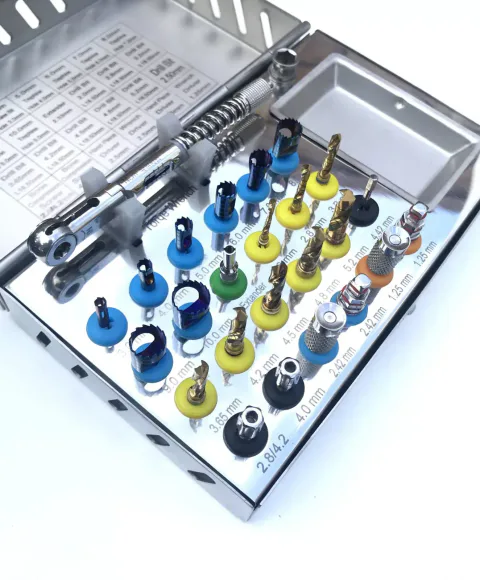

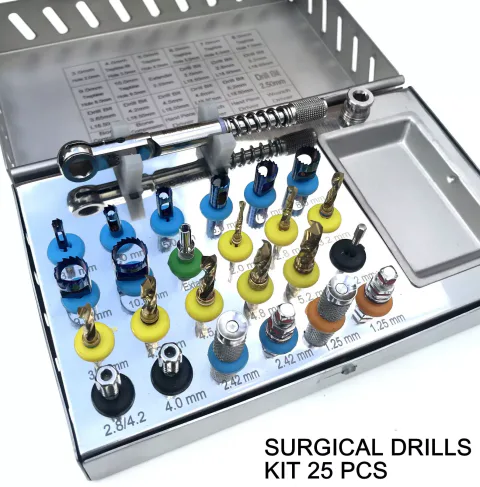

Open bur and trephine kit with blue-holder hollow trephines, yellow-holder solid drills and a torque wrench at the rear

Open case with the hollow and solid cutting series in separate holders.

  1. Trephines

    Blue holder: hollow tubes with side windows and a toothed circular rim.

  2. Drills

    Yellow holder: solid fluted drills.

  3. Torque wrench

    Long wrench at the rear of the case.

  4. Drivers and reach parts

    Drivers, extenders and compression screws held alongside the cutting series.

  5. Sizes

    Take driver and interface sizes from the specification on this page.

Describing a replacement

For complete kits, give the number of sets; each set is 25 instruments with the storage box in addition.

  • Trephine: nominal 6 mm, titanium-coated, kit DIS-DEN-0357, stating whether your existing size is inner or outer diameter
  • Drill: 3.65 mm, titanium-coated, kit DIS-DEN-0357
  • Handpiece driver: labelled 2.42 mm, with your handpiece and implant system named
  • Compression screw or extender: the printed label, such as 2.8/4.2 mm or 2.33 mm
Have experience with Universal Bur and Trephine Kit?Share verified buyer or evaluator feedback. It takes about a minute.

Universal Bur and Trephine Kit Questions

How many instruments are in the Universal Bur and Trephine Kit?

There are 25: eight trephines, eight drills, one torque wrench, two hex drivers, two handpiece drivers, one ratchet extender, two compression screws and one extender. The storage box is supplied in addition to these.

How do the trephines differ from the drills?

The trephines are hollow: each cuts a circular channel and leaves a cylindrical core inside the tube. The drills are solid and cut a full-width bore. The kit lists them as two separate series, eight trephines from 3 to 10 mm and eight drills from 2 to 5.2 mm.

Are the trephine sizes inner or outer diameters?

The trephines are labelled with single figures from 3 to 10 mm, and this kit's listing does not state whether these are inner or outer diameters. If you are matching them to trephines you already use, tell us which convention your current sizes follow when you request a quote.

Are the trephines and drills solid titanium?

No. They are AISI 420 stainless steel with a titanium coating.

Does 'universal' mean the drivers fit every implant system?

No. 'Universal' describes the breadth of the assortment. The kit has two long hex drivers with a 1.25 mm hex, handpiece drivers of 1.25 mm and 2.42 mm, and a 10–40 Ncm wrench with 4.0 mm and 6.35 mm interfaces. On the hex drivers, 1.25 mm is the hex size, not the driver length. Name your implant system and handpiece when you request a quote so we can compare these interfaces with it.

Can the kit be autoclaved?

Yes. All 25 instruments are reusable and autoclavable. Reprocess the set according to the instructions supplied with it.
